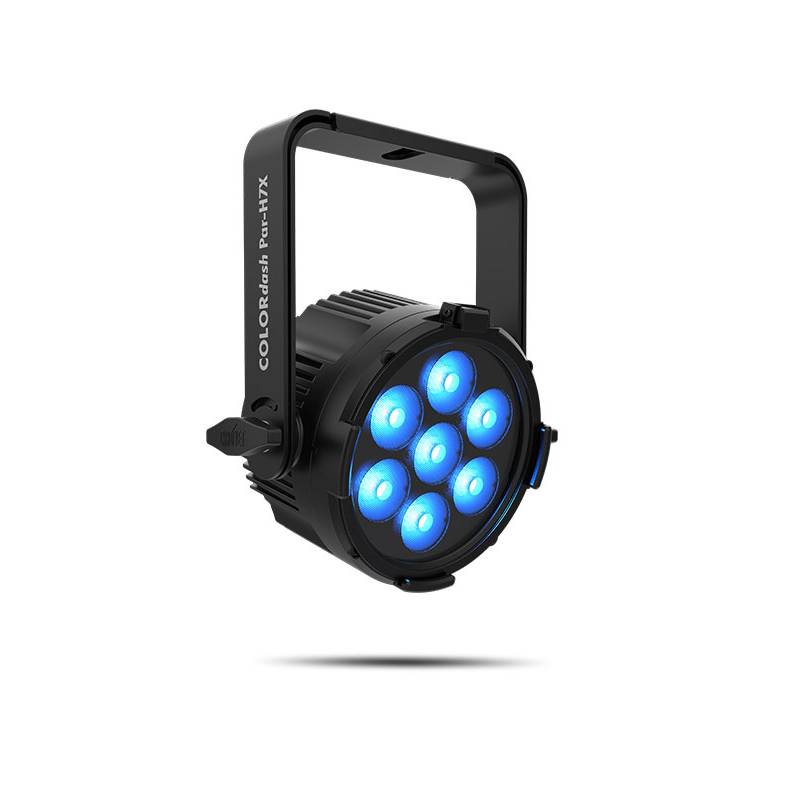

Features of the Chauvet Pro COLORdash PAR H7X: Rugged RGBWA-UV LED wash for events Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera RDM (Remote Device Management) for added flexibility Selectable, smooth dimming curves for eliminate flicker and choppiness in fades Easy to read OLED display with password protection and touchscreen interface Advanced optics provide exceptional color mixing and high efficiency Double-bracketed yoke with omega bracket doubles as floor stand Specifications: OPTICAL Light Source: 7 LEDs (hex-color RGBAW UV) 84 W, (505 mA), 50,000 hours life expectancy Color Temperature (range): 2800 to 10,000 K Color Temperature (at full): 14,329 K Beam Angle: 22.7° Field Angle: 37.6° Lumens: 2738 Illuminance (total): 522 lux @ 5 m Selectable PWM: 600 Hz, 1.2K Hz, 2K Hz, 4K Hz, 6K Hz, 25K Hz DYNAMIC EFFECTS Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 20 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Dim Modes: 4 Built-in Automated Programs: Yes Customizable Programs: No CONSTRUCTION / PHYSICAL Dimensions: 10.16 x 9.45 x 4.57 in (258 x 240 x 116 mm) Weight: 6 lb (2.7 kg) Exterior Color: Black Housing Material: Aluminum alloy, Aluminum die-cast Accessory Holder/Gel Frame Size: 6.5 in (165 mm) CONNECTIONS Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 Power Output: Seetronic Powerkon IP65 Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR Cable Length (power): 5 ft (1.5 m) CONTROL Control Protocol: DMX, RDM DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch) ELECTRICAL Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 20 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V Power and Current: 70 W, .592 A @ 120 V, 60 Hz Power and Current: 67 W, .344 A @ 208 V, 60 Hz Power and Current: 67 W, .312 A @ 230 V, 50 Hz CERTIFICATIONS / QUALIFICATIONS CE, MET, FCC, UKCA, FCC IP Rating: IP20, dry location Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) WHAT’S INCLUDED Colordash Par H7X Seetronic powerkon IP65 power cord Gel frame holder Gel frame
