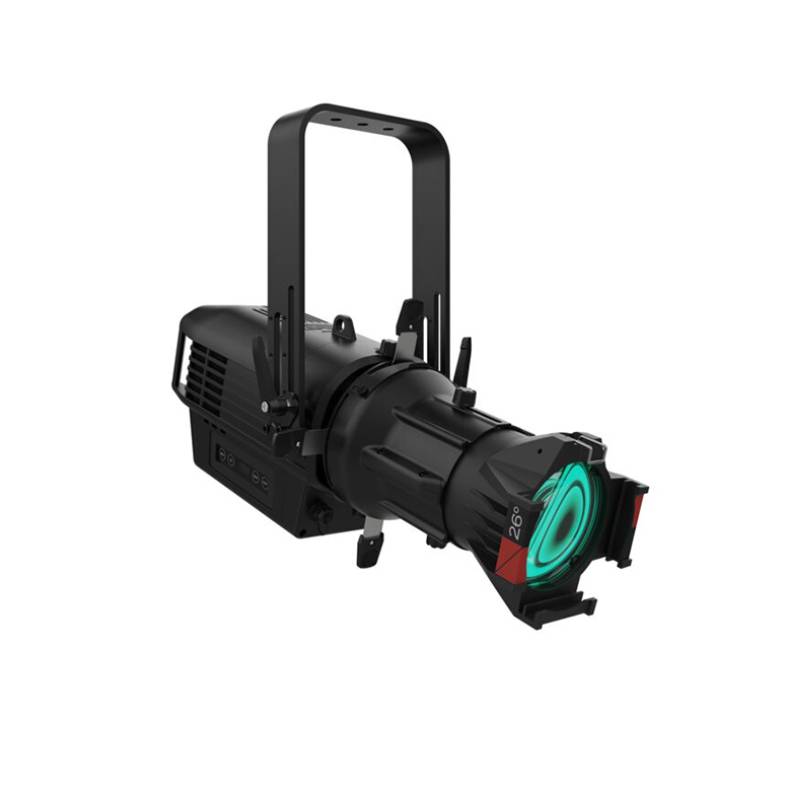

Chauvet Pro Ovation Rêve E-3 IP Full-Spectrum LED ERS Light

Features of the Chauvet Pro Ovation Reve E-3 IP: Full-spectrum, high-power LED ERS-style lighting fixture for theater, film, and production Fully IP65 rated for seasonal use indoors or out Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS Virtual color wheel with color matched to popular gel colors /- Green adjustment and emulated red-shift via DMX or on-board control RDM (Remote Device Management) for added flexibility Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera Virtually silent operation for use in studio, film, and theater applications Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme. Innovative adjustable yoke for mounting in low clearance areas Direct power/data connection and control options for the Ovation GR-1 gobo rotator USB port for fixture software updates Specifications: OPTICAL Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy Color Temperature (range): 2800 to 8000 K Color Temperature (at full): 6,428 K CRI: 93.5 Beam Angle (w/5° lens): 6.7° Beam Angle (w/10° lens): 11.1° Beam Angle (w/14° lens): 14.2° Beam Angle (w/19° lens): 17.6° Beam Angle (w/26° lens): 26° Beam Angle (w/36° lens): 32.8° Beam Angle (w/50° lens): 50° Beam Angle (w/15°€“30° lens)(Narrow): 14.3° Beam Angle (w/15°€“30° lens)(Wide): 23.8° Beam Angle (w/25°€“50° lens)(Narrow): 24.7° Beam Angle (w/25°€“50° lens)(Wide): 41.1° Field Angle (w/5° lens): 7.9° Field Angle (w/10° lens): 12.8° Field Angle (w/14° lens): 16.9° Field Angle (w/19° lens): 20.8° Field Angle (w/26° lens): 28.2° Field Angle (w/36° lens): 37° Field Angle (w/50° lens): 54.2° Field Angle (w/15°€“30° lens)(Narrow): 17.3° Field Angle (w/15°€“30° lens)(Wide): 33.2° Field Angle (w/25°€“50° lens)(Narrow): 27.3° Field Angle (w/25°€“50° lens)(Wide): 44.7° Lumens (w/5° lens): 8,335 Lumens (w/10° lens): 11,092 Lumens (w/14° lens): 10,700 Lumens (w/19° lens): 10,185 Lumens (w/26° lens): 12,178 Lumens (w/36° lens): 11,888 Lumens (w/50° lens): 11,274 Lumens (w/15°€“30° lens)(Narrow): 9,166 Lumens (w/15°€“30° lens)(Wide): 11,395 Lumens (w/25°€“50° lens)(Narrow): 11,810 Lumens (w/25°€“50° lens)(Wide): 14,328 Illuminance (w/5° lens): 28,740 lux @ 5 m Illuminance (w/10° lens): 15,108 lux @ 5 m Illuminance (w/14° lens): 8,823 lux @ 5 m Illuminance (w/19° lens): 5,377 lux @ 5 m Illuminance (w/26° lens): 3,300 lux @ 5 m Illuminance (w/36° lens): 1,977 lux @ 5 m Illuminance (w/50° lens): 864 lux @ 5 m Illuminance (w/15°€“30° lens)(Narrow): 7,731 lux @ 5 m Illuminance (w/15°€“30° lens)(Wide): 2,484 lux @ 5 m Illuminance (w/25°€“50° lens)(Narrow): 3,174 lux @ 5 m Illuminance (w/25°€“50° lens)(Wide): 1,502 lux @ 5 m Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz DYNAMIC EFFECTS Dimmer: Electronic Shutter/Strobe: Electronic Focus: Manual Strobe Rate: 0 to 28.6 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Dim Modes: 4 Dim Curves: 4 Built-in Automated Programs: Yes CONSTRUCTION / PHYSICAL Dimensions (fixture only, yoke up): 20.83 x 12.71 x 19.75 in (529.3 x 323 x 501.7 mm) Dimensions (w/5° lens extended, yoke up): 42.25 x 14.5 x 19.75 in (1073.15 x 368.3 x 501.7 mm) Dimensions (w/10° lens extended, yoke up): 33.5 x 12.71 x 19.75 in (850.9 x 323 x 501.7 mm) Dimensions (w/14° lens extended, yoke up): 30.25 x 12.71 x 19.75 in (768.35 x 323 x 501.7 mm) Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up): 27.5 x 12.71 x 19.75 in (698.5X 323 X 501.7 mm) Dimensions (w/15°€“30° lens, yoke up): 33.75 x 12.71 x 19.75 in (857.25 x 323 x 501.7 mm) Dimensions (w/25°€“50° lens, yoke up): 26.5 x 12.71 x 19.75 in (673.1x 323 x 501.7 mm) Weight: 20.6 lb (9.34 kg) Weight (w/5° lens): 25.2 lb (11.43 kg) Weight (w/10° lens): 23.8 lb (10.79 kg) Weight (w/14° lens): 26 lb (11.79 kg) Weight (w/26° lens): 24.4 lb (11.06 kg) Weight (w/15°€“30° lens): 30.2 lb (13.69 kg) Weight (w/25°€“50° lens): 26.8 lb ( 12.15 kg) Exterior Color: Black Housing Material: Magnesium alloy Gobo Size (Optional): €œA€: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness) Gobo Size (Optional): €œB€: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness) Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm) Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm) Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm) Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm) Accessory Holder/Gel Frame Size (15°€“30° lens): 7.5 in (191 mm) Accessory Holder/Gel Frame Size (25°€“50° lens): 7.5 in (191 mm) CONNECTIONS Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 Power Input: Seetronic Powerkon IP65 Power Output: Seetronic Powerkon IP65 Data Connectors: 5-pin XLR Cable Length (power): 5 ft (1.5 m) Software Connection: Type-C USB CONTROL Control Protocol: DMX, RDM DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV) ELECTRICAL Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V Power and Current: 354 W, 2.999 A @ 120 V, 60 Hz Power and Current: 345 W, 1.707 A @ 208 V, 60 Hz Power and Current: 342 W, 1.555 A @ 230 V, 50 Hz CERTIFICATIONS / QUALIFICATIONS CE, MET, FCC, UKCA IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) WHAT’S INCLUDED Ovation Rêve E-3 IP Seetronic Powerkon power cable Ovation Metal Gobo Holder Soft Focus Filter
