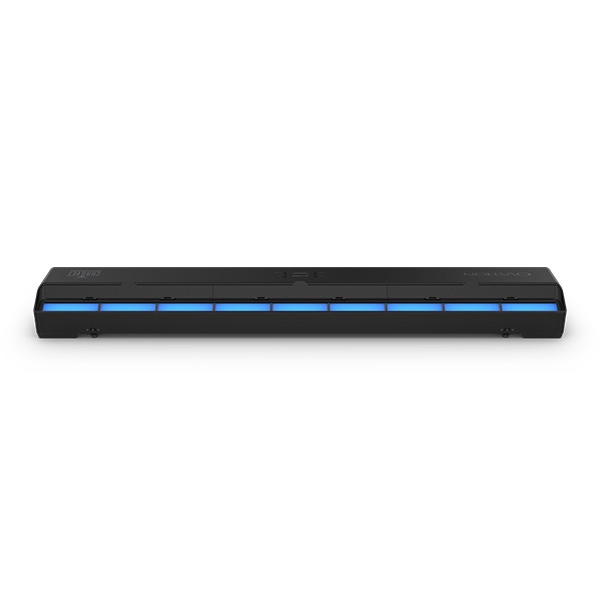

Chauvet Pro Ovation CYC 3 FC Cyclorama

Features of the Chauvet Pro Ovation CYC 3 FC Cyclorama: Low-profile and lightweight cyclorama wash or footlight fixture, in a 1m length to complement the Ovation CYC 1 FC Display a full spectrum of hues with RGBAL LEDs for theater, film, and production Theater-ready with 16-bit dimming of master dimmer and individual colors Beam modification with built in €œkick stands€ and adjustable glare shield Flat, even field of light with superior color mixing Virtual Color wheel with color matched to popular gel colors and color temperature presets RDM (Remote Device Management) for added flexibility Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera Silent operation for use in studio and theater applications Specifications: OPTICAL Light Source: 180 LEDs (36 red, 36 green, 36 blue, 36 amber, 36 lime) 2.5 W to 3.5, (725 mA) Color Temperature (range): 2800 to 6500 K CRI (3200K): 90 Beam Angle (Horizontal): 111.4° Field Angle (Horizontal): 151.8° Beam Angle (Vertical): 76.7° Field Angle (Vertical): 134.4° Lumens : 19,575 Illuminance (total): 280 lux @ 5 m PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz DYNAMIC EFFECTS Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 29 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Dim Modes: 4 Dim Curves: 4 Built-in Automated Programs: Yes Customizable Programs: No Recall Custom Programs: No CONSTRUCTION / PHYSICAL Dimensions: 47.13 x 6.30 x 4.33 in (1197 x 160 x 110 mm) Weight: 24.6 lb (11.2 kg) Exterior Color: Black Housing Material: Aluminum die-cast CONNECTIONS Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 Power Input: Seetronic Powerkon IP65 Power Output: Seetronic Powerkon IP65 Data Connectors: 5-pin XLR Cable Length (power): 5 ft (1.5 m) CONTROL Control Protocol: DMX, RDM DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16, or HSV Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV) ELECTRICAL Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 4 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V Power and Current: 345 W, 2.93 A @ 120 V, 60 Hz Power and Current: 338 W, 1.77 A @ 208 V, 60 Hz Power and Current: 334 W, 1.64 A @ 230 V, 50 Hz CERTIFICATIONS / QUALIFICATIONS CE, MET, FCC, UKCA IP Rating: IP20, dry location Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) WHAT’S INCLUDED OVATION CYC-3FC Seetronic Powerkon power cord Omega brackets with mounting hardware https://www.youtube.com/watch?v=TWqr6kFlD-M
