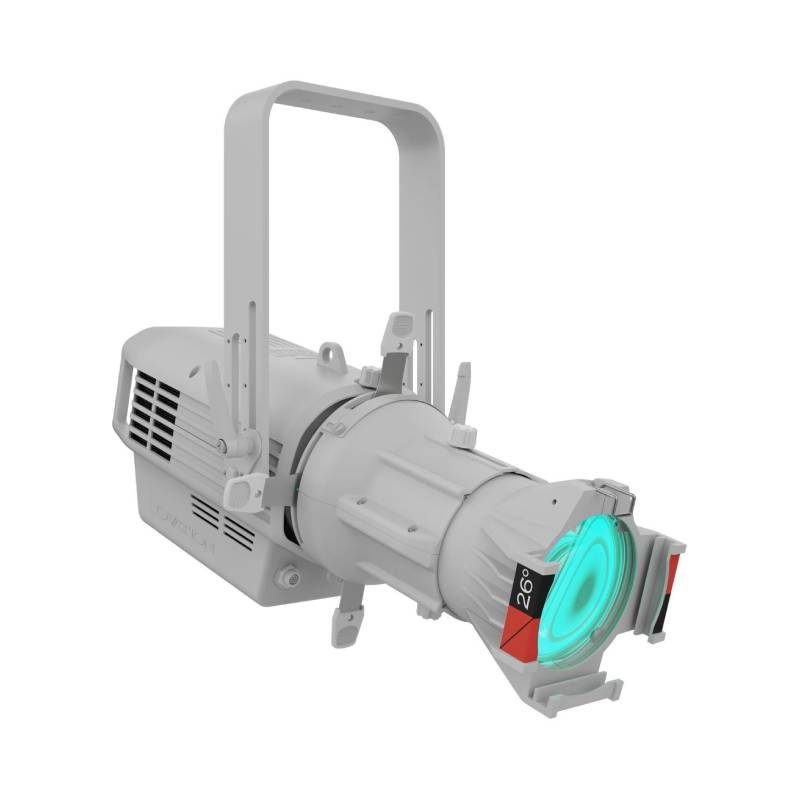

Chauvet Pro Ovation Reve E-3 – White

Features of the Chauvet Pro Ovation Reve E-3: Full-spectrum LED ERS-style lighting fixture for theater, film and production Linear colour temperature presets from 2800 K to 8000 K with high CRI and CQS Virtual colour wheel with colour matched to popular gel colours /- Green adjustment and emulated red-shift via DMX or on-board control RDM (Remote Device Management) for added flexibility Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera Virtually silent operation for use in studio, film and theater applications Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme. Innovative adjustable yoke for mounting in low clearance areas Direct power/data connection and control options for the Ovation GR-1 gobo rotator USB port for fixture software updates Specifications: OPTICAL Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy Colour Temperature (range): 2800 to 8000 K Colour Temperature (at full): 5470K CRI (3200 K): 95.4 Beam Angle (w/5° lens): 4.6° Beam Angle (w/10° lens): 10° Beam Angle (w/14° lens): 14.8° Beam Angle (w/19° lens): 18.5° Beam Angle (w/26° lens): 26° Beam Angle (w/36° lens): 33.3° Beam Angle (w/50° lens): 49.5° Beam Angle (w/15°€“30° lens)(Narrow): 13° Beam Angle (w/15°€“30° lens)(Wide): 28.5° Beam Angle (w/25°€“50° lens)(Narrow): 23.6° Beam Angle (w/25°€“50° lens)(Wide): 40.5° Field Angle (w/5° lens): 5.6° Field Angle (w/10° lens): 11.1° Field Angle (w/14° lens): 16° Field Angle (w/19° lens): 21.6° Field Angle (w/26° lens): 29.6° Field Angle (w/36° lens): 37.1° Field Angle (w/50° lens): 55.7° Field Angle (w/15°€“30° lens)(Narrow): 15.4° Field Angle (w/15°€“30° lens)(Wide): 32.2° Field Angle (w/25°€“50° lens)(Narrow): 25.8° Field Angle (w/25°€“50° lens)(Wide): 44.1° Lumens (w/5° lens): 5,076 Lumens (w/10° lens): 11,250 Lumens (w/14° lens): 12,179 Lumens (w/19° lens): 12,156 Lumens (w/26° lens): 13,300 Lumens (w/36° lens): 13,223 Lumens (w/50° lens): 12,216 Lumens (w/15°€“30° lens): 12,057 Lumens (w/25°€“50° lens): 14,355 Illuminance (w/5° lens): 31,856 lux @ 5 m Illuminance (w/10° lens): 18,924 lux @ 5 m Illuminance (w/14° lens): 9,284 lux @ 5 m Illuminance (w/19° lens): 5,635 lux @ 5 m Illuminance (w/26° lens): 3,378 lux @ 5 m Illuminance (w/36° lens): 2,085 lux @ 5 m Illuminance (w/50° lens): 870 lux @ 5 m Illuminance (w/15°€“30° lens)(Narrow): 9,292 lux @ 5 m Illuminance (w/15°€“30° lens)(Wide): 2,671 lux @ 5 m Illuminance (w/25°€“50° lens)(Narrow): 3,710 lux @ 5 m Illuminance (w/25°€“50° lens)(Wide): 1,527 lux @ 5 m Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz DYNAMIC EFFECTS Dimmer: Electronic Shutter/Strobe: Electronic Focus: Manual Strobe Rate: 0 to 30 Hz Standalone Colour Mixing: Yes Colour Temperature Presets: Yes Dim Modes: 4 Dim Curves: 4 Built-in Automated Programs: Yes CONSTRUCTION / PHYSICAL Dimensions (fixture only, yoke up): 20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm) Dimensions (w/5° lens extended, yoke up): 41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm) Dimensions (w/10° lens extended, yoke up): 32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm) Dimensions (w/14° lens extended, yoke up): 29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm) Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up):26.83 x 13.07 x 20.53 in (681 X 332 X 522 mm) Dimensions (w/15°€“30° lens, yoke up): 33.02 x 13.52 x 20.53 in (839 x 343 x 522 mm) Dimensions (w/25°€“50° lens, yoke up): 25.74 x 13.52 x 20.53 in (838 x 343 x 522 mm) Weight (fixture only): 18.6 lb (8.4 kg) Weight (w/5° lens): 26 lb (11.7 kg) Weight (w/10° lens): 24 lb (10.8 kg) Weight (w/14° lens): 25.6 lb (11.6 kg) Weight (w/26° lens): 24.2 lb (10.9 kg) Weight (w/15°€“30° lens): 32.3 lb (14.6 kg) Weight (w/25°€“50° lens): 29.8 lb ( 13.5 kg) Exterior Colour: White Gobo Size (Optional): €œA€: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness) Gobo Size (Optional): €œB€: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness) Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm) Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm) Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm) Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm) Accessory Holder/Gel Frame Size (15°€“30° lens): 7.5 in (191 mm) Accessory Holder/Gel Frame Size (25°€“50° lens): 7.5 in (191 mm) CONNECTIONS Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 Power Input: Seetronic Powerkon IP65 Power Output: Seetronic Powerkon IP65 Data Connectors: 3- and 5-pin XLR Cable Length (power): 5 ft (1.5 m) Software Connection: USB CONTROL Control Protocol: DMX, RDM DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV) ELECTRICAL Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V Power and Current: 367 W, 3.04 A @ 120 V, 60 Hz Power and Current: 356 W, 1.76 A @ 208 V, 60 Hz Power and Current: 353 W, 1.59 A @ 230 V, 50 Hz CERTIFICATIONS / QUALIFICATIONS CE, MET, FCC IP Rating: IP20, dry location Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) WHAT’S INCLUDED Ovation Reve E-3 Seetronic Powerkon power cord Ovation Metal Gobo Holder Soft Focus Filter REQUIRED ACCESSORIES Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
