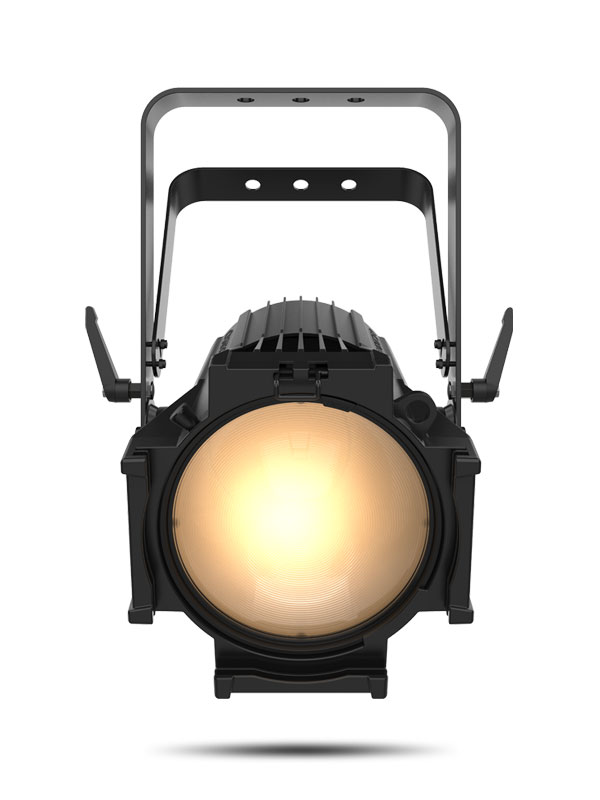

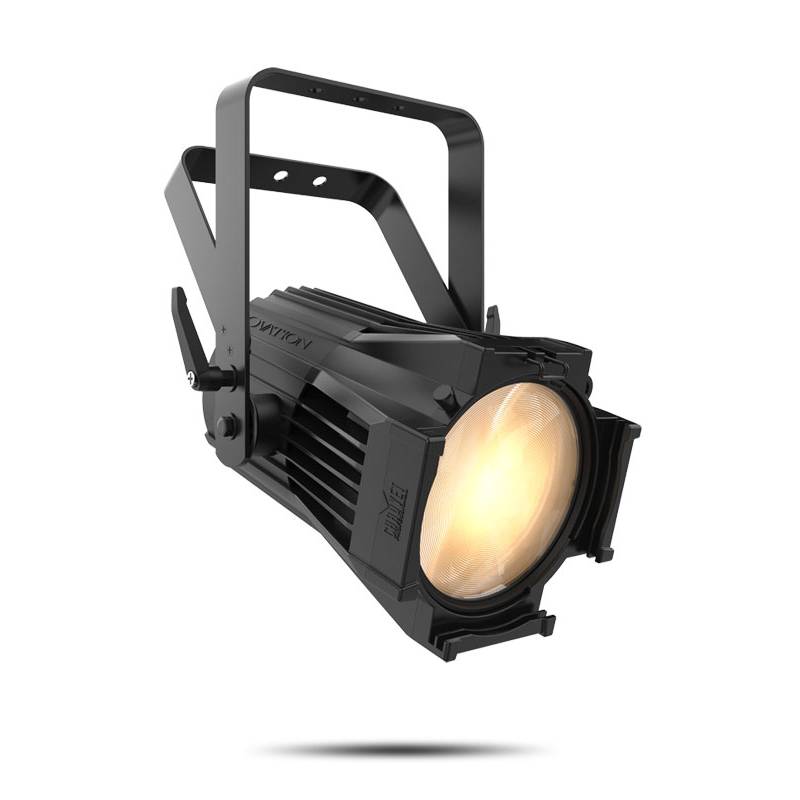

Features of the Chauvet Pro Ovation P-56WW Warm White Par Can: Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp 16-bit dimming resolution for smooth fades Compact design with homogeneous single source of light Flat, even field of light Quiet operation for use in any situation Interchange lens plates included for narrow, medium and wide beam angles Specifications Optical Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3422 K, 50,000 hours life expectancy Color Temperature (at full): 3422 K CRI: 98.1 Beam Angle (Narrow lens): 11° Beam Angle (Medium lens): 22° Beam Angle (Wide lens): 48° Beam Angle (Wide lens w/ egg crate) : 37° Field Angle (Narrow lens): 24° Field Angle (Medium lens): 39° Field Angle (Wide lens): 81° Field Angle (Wide lens w/egg crate): 67° Lumens (w/Narrow lens): 10,326 Lumens (w/Medium lens): 10,728 Lumens (w/Wide lens): 10,687 Illuminance (w/Narrow Lens): 6,680 lux @ 5 m Illuminance (w/Medium Lens): 2,470 lux @ 5 m Illuminance (w/Wide Lens): 475 lux @ 5 m Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz Dynamic Effects Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 29 Hz Dim Modes: 4 Built-in Automated Programs: Yes Construction / Physical Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm) Weight: 11.6 lb (5.3 kg) Exterior Color: Black Accessory Holder/Gel Frame Size: 7.5 in (191 mm) Connections Power Connection: Edison (Local) plug to Neutrik powerCON Data Connectors: 3- and 5-pin XLR Cable Length (power): 5 ft (1.5 m) Control Control Protocol: DMX, RDM DMX Channels: 1, 2, 3 or 6 Modes/Personalities: 4 personalities (1, 2, 3, 6) Electrical Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V Power and Current: 208 W, 1.72 A @ 120 V, 60 Hz Power and Current: 215 W, 1.02 A @ 208 V, 60 Hz Power and Current: 216 W, .93 A @ 230 V, 50 Hz Certifications / Qualifications CE, MET IP Rating: IP20, dry location Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) What’s Included Ovation P-56WW Neutrik powerCON power cord Optional Accessories Professional Clamps: CTC-50HC, CTC-50HCN Neutrik® powerCON® cables 3-pin or 5-pin DMX Cables Color Blending Filters: DF60X1D, DF20D Ovation F 7.5€³ Barndoor Ovation 60deg, 7.5€ Honeycomb
