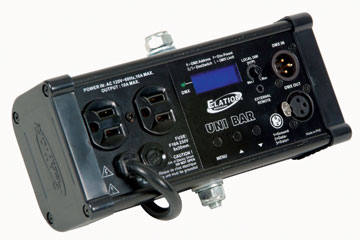

Elation Uni Bar – 1 ch. Dimmer – 10 amps max

Features of the Elation Uni Bar: Single DMX Channel Switch or Dimmer Pack Mode 10 Amp Maximum Channel Output Dimmer Preset and Dimmer Limit Settings Local HTP Dimmer Control Dial Input for Optional Analog HTP Dimmer Controller Power Failure Memory Truss Mountable Specifications: CONTROL / CONNECTIONS 1 DMX Channel 3-Button Control Panel LCD Menu Display On-board HTP Dimming Control Dial Input for Optional Analog HTP Dimmer 2 Edison 3-prong Outputs (10A Max Total Output) 3pin DMX In/Out* SIZE / WEIGHT Length: 7.83” (200mm) Width: 3.23” (82mm) Vertical Height: 2.63” (66.8mm) Weight: 2.4 lbs. (1.1 kg) ELECTRICAL AC 120V – 60Hz / 10A Max Total Output
