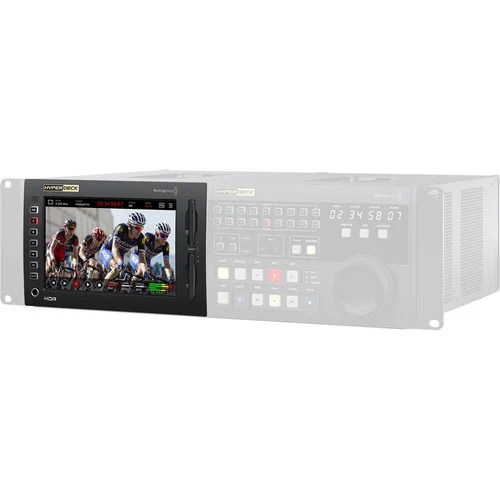

Blackmagic Design HyperDeck Extreme 8K HDR

Description Key Features Large LCD with Touchscreen Deck Controls Physical Controls, Two CFast Card Slots Quad 12G-SDI, HDMI, and Legacy Analog Fast USB Type-C Disk Port; 10G Ethernet PCIe Cache Card Slot H.265 Recording/Playback, ProRes Support Rec. 2020/709 Support, HDR Scopes SDI/HDMI Auto HDR Detection Multichannel SDI and Analog Audio Load and Save 3D LUT Blackmagic Design HyperDeck Extreme 8K Specs SDI Video Inputs 4 SDI Video Outputs 5 (12G-SDI A, B, C, D, and 3G-SDI Monitor Out) SDI Data Rates 270 MB/s, 1.5G, 3G, 6G, 12G HDMI Video Inputs 1 x HDMI 2.0 Type A HDMI Video Outputs 1 x HDMI 2.0 Type A Analog Video Inputs 1 x Component YUV on 3 BNCs 1 x Composite NTSC/PAL on 1 BNC Analog Video Outputs None Analog Audio Inputs 4 Channels of Professional Balanced Analog Audio via XLR Connectors 2 Channels of Consumer Unbalanced via RCA connectors Speaker Built-In Mono Speaker Display 7″ with 1920 x 1200 Resolution, 2000 cd/m², DCI-P3 100% HDR LCD Timecode Input & Output 1 x XLR Input 1 x XLR Output Reference Input Tri-Sync or Black Burst SDI Audio Inputs 16 Channels of Embedded Audio SDI Audio Outputs 16 Channels of Embedded Audio HDMI Audio Inputs 8 Channels of Embedded Audio HDMI Audio Outputs 8 Channels of Embedded Audio Remote Control 1 x RS-422 Input 1 x RS-422 Output Recorder Configuration Via User Interface or Blackmagic HyperDeck Ethernet Protocol Ethernet 10 Gb/s External Recording Output 1 x USB Type-C 3.1 Gen 2 (up to 10 Gb/s) for External Disk Recording Computer Interface 1 x USB Type-C for Software Updates SD Video Standards 525i: 59.94 NTSC 625i: 50 PAL HD Video Standards 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080PsF: 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 2K DCI Video Standards 1080p: 25, 24, 23.98 1080PsF: 25, 24, 23.98 UHD Video Standards 2160: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 4K DCI Video Standards 2160p: 25, 24, 23.98 8K Video Standards 4320: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 8K DCI Video Standards 4320p: 25, 24, 23.98 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 SDI Metadata Support HD RP188 and Closed Captioning CEA-708, HDR Metadata Supported on SDI Audio Sampling Television Standard 24-Bit, 48 kHz Sample Rate Video Sampling 4:2:2 YUV Color Precision 10-Bit Color Space Rec. 601, Rec. 709, Rec. 2020. 33-Point 3D LUTs Can Be Applied via the LUT Menu Tab. Multi Rate Support Autodetection of SD, HD, 6G-SDI, 12G-SDI, 2SI Quad-Link 12G-SDI. Copy Protection HDMI Input is Unable to Capture from Copy Protected HDMI Sources. Always Confirm Copyright Ownership Before Capture or Distribution of Content. Cache Recording Slot for Optional M.2 PCIe NVMe Card for Cache Recording up to 16 GB/s. 60, 80, and 110 mm Supported. Media 2 x CFast 2.0 Card Slots and 1 x USB Type-C 3.1 Gen 2 Expansion Port for External Recording of SD, HD, UHD, and 8K. Media Type CFast Card and External USB Type-C Flash Drives Media Format Can Format Media to ExFAT (Windows/Mac) or HFS (Mac) File Systems Supported Codecs ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for All Formats up to 4320p60. H.265 High, H.265 Medium, H.265 Low for All Progressive Formats up to 4320p60. Scopes Waveform, RGB Parade, Vector, and Histogram Scopes in Broadcast-Quality 10-Bit Viewing Modes Picture-in-Picture; Picture Overlay with Opacity Control. Waveform and RGB Parade with Standard and HDR Graticules; Vector with Zoom. Control Panel Integrated Capacitive Touchscreen LCD with On-Screen Controls for Settings and Navigating Menus. External Control RS-422 Deck Control, SDI Start/Stop, Timecode Run. Includes Blackmagic HyperDeck Ethernet Protocol. Internal Software Upgrade Loaded at System Start or via Blackmagic HyperDeck Setup Using USB Port Supported Operating Systems Mac 10.13 High Sierra, 10.14 Mojave, or Later Windows 8.1 or 10 Power Supply 1 x Internal 100-240 VAC 1 x 4-Pin XLR 12 VDC Input for External Power or Battery Use Rack Compatibility 3 RU, Half-Rack Width Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 113°F / -20 to 60°C Relative Humidity 0 to 90% Non-Condensing Dimensions 8.3 x 5.1 x 13.2″ / 21 x 13 x 33.5 cm Weight 8 lb / 3.6 kg
