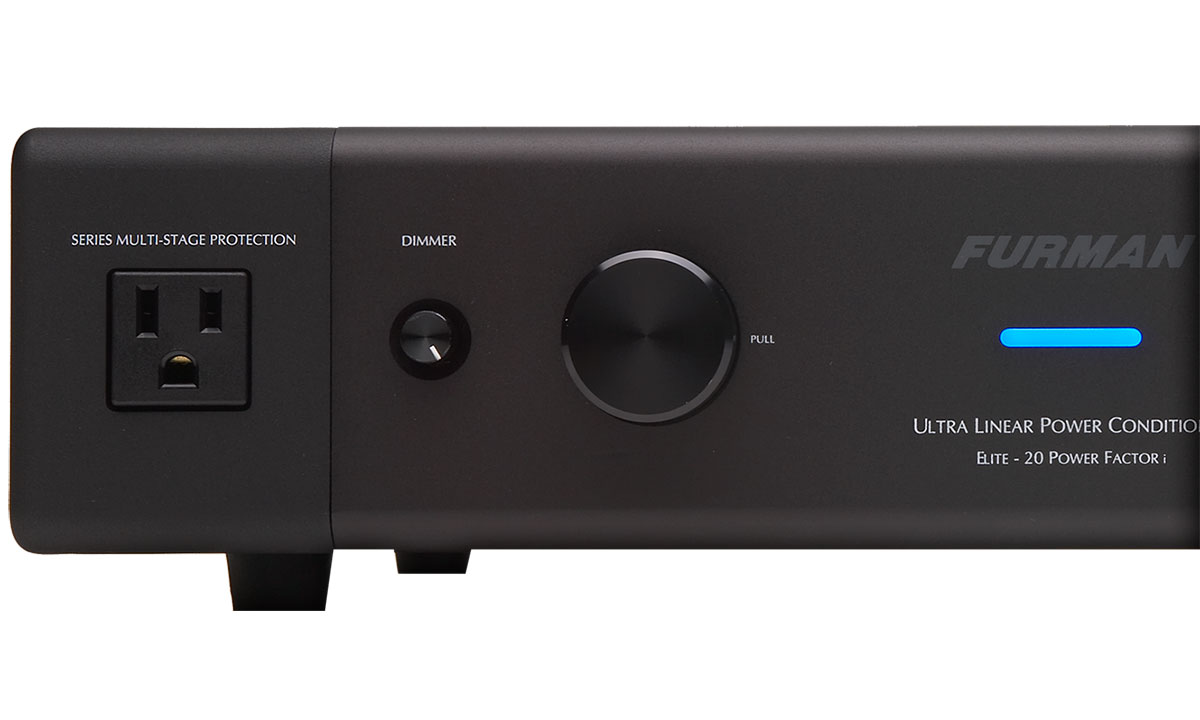

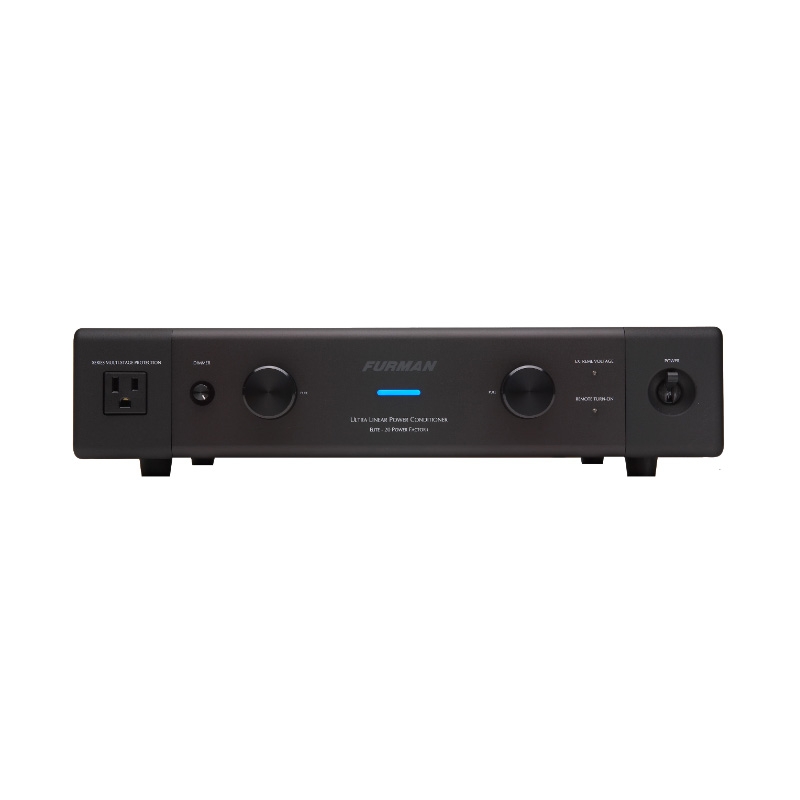

Furman ELITE-20 PFI 20 Amp Conditioner Power HT Power Factor

Features of the Furman ELITE-20 PFI 20 Amp Conditioner Power HT Power Factor: SMP provides the highest level of protection available LiFT significantly reduces AC line noise E.V.S. protects equipment from dangerous overvoltage conditions Zero ground contamination circuitry protects critical digital components Power Factor Technology provides over 55 Amps peak charge surplus current for power-starved amplifiers Ultrasonic bi-filtering isolates digital and video circuits from analog components Retractable LED lamps illuminate a cabinet or rack full of equipment Detachable module for telco surge suppression and 3 pairs of cable / satellite TVSS isolated F-connectors 12 Volt triggering for remote control Specifications: General Family Elite Series Line Voltage 120 (Volts) Number of Outlets 13 Number of Isolated Banks 3 Outlet Descriptions (Ultra-Linearly filtered outlet – front panel) 8 (Ultra-Linearly filtered outlets with additional ultrasonic filtering for either video or audio components, 4 with 12V triggering) 4 (Power Factor Technology amplifier outlets – 4.5 amps RMS reserve – reactive load – over 55 amps peak charge, 2 with 5 second delay via 12V triggering) Rack Mountable Yes Rack Ears Included Yes Front Panel Meter(s) No Front Media Light(s) 2 Retractable LED lamps Control On/Off switch and light dimmer knob on front panel. 12 Volt triggering for remote control. Voltage Regulation No Compliance NRTL-C USB Charging N/A Low Voltage Trigger 12V, In/Out Dimensions 4″ H x 17″ W x 14.75″ D (Standard 2 RU height without feet) Weight 18 lbs Power Consumption 12 Watts for display and control circuits independent of actual load AC Protection AC Protection Technology Extreme Voltage Shutdown Series Multi-Stage Protection Non-sacrificial protection with zero ground contamination Under-Voltage Shut off 85V Over-Voltage Shut off 140V ±3V Maximum Current Rating 20 (Amps) Initial Clamping Level 188 VAC peak @ 3,000 Amps Filtration Filtration Technology LiFT Filtration Rating Transverse (Differential) Mode: > 40 dB from 5Khz. – 100 kHz. >80 dB from – 100 kHz. – 1GHz.Common Mode: 40dB from 10Hz. 30 kHz. 20 from 40 kHz. 1MHz. (Linear attenuation curve from 0.05 to 100 ohms line impedance) Signal Line Protection Tel 3 Cable/Satellite
