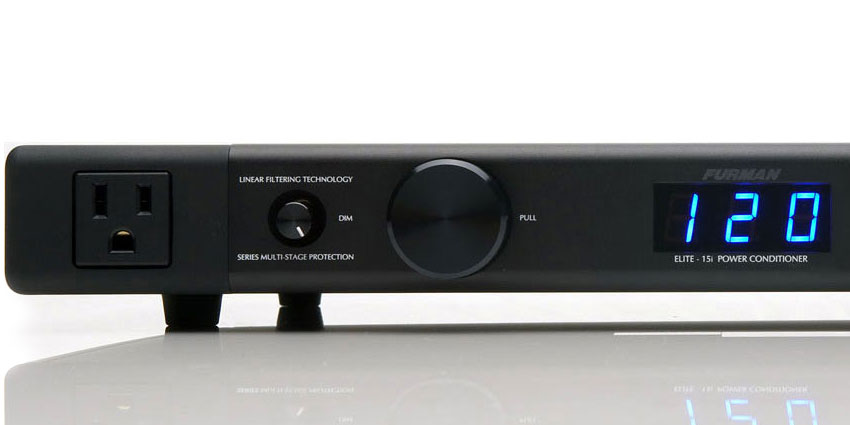

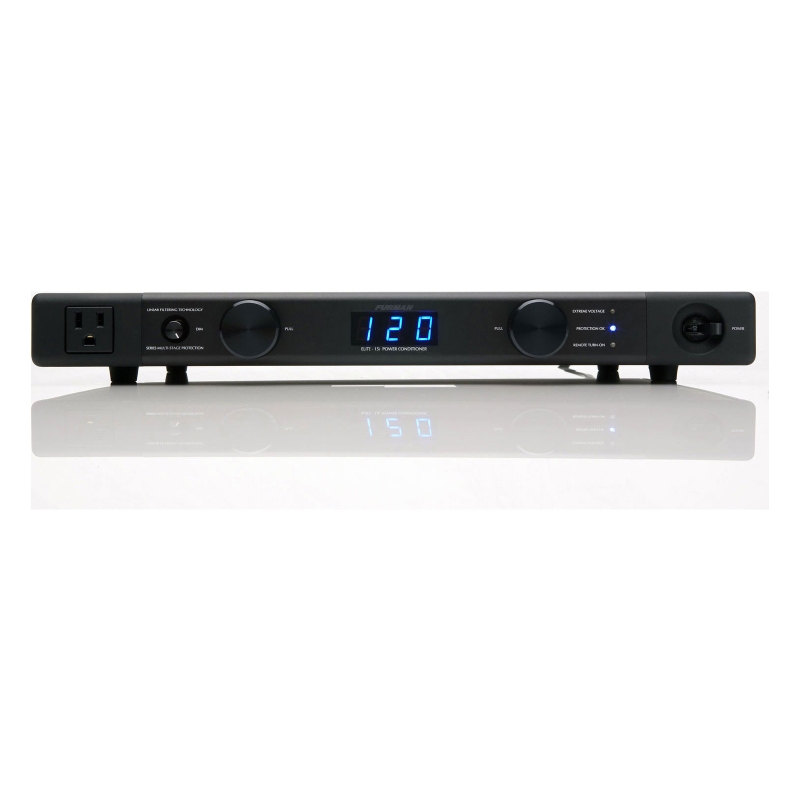

Features of the Furman ELITE-15I 15 Amp Conditioner Power HT: SMP provides the highest level of protection available LiFT significantly reduces AC line noise E.V.S. protects equipment from dangerous overvoltage conditions Zero ground contamination circuitry assures delivery of pure AC Two retractable, long-life, low-heat LED lights with dimmer for rack illumination 12 volt triggering for remote control Specifications: General Family Elite Series Line Voltage 120 (Volts) Number of Outlets 7 Number of Isolated Banks 3 Outlet Descriptions (linearly filtered outlet – front) 4 (linearly filtered outlet – rear panel) 2 (linearly filtered outlets with additional ultrasonic filtering for digital or video components) Rack Mountable Yes Rack Ears Included Yes Front Panel Meter(s) LED voltmeter displays incoming line voltage Front Media Light(s) 2 Retractable LED lamps Control On/Off switch and light dimmer knob on front panel. 12 Volt triggering for remote control. Voltage Regulation No Compliance NRTL-C USB Charging N/A Low Voltage Trigger 12 V, In/Out Dimensions 2.15″ H x 17″ W x 14.75″ D (Standard 1 RU height without feet) Weight 11 lbs Power Consumption 6 Watts for display and control circuits independent of actual load AC Protection AC Protection Technology Extreme Voltage Shutdown Series Multi-Stage Protection Non-sacrificial protection with zero ground contamination Under-Voltage Shut off 85V Over-Voltage Shut off 140V ±3V Maximum Current Rating 15 (Amps) Initial Clamping Level 188 VAC peak @ 3,000 Amps Filtration Filtration Technology LiFT Filtration Rating >40 dB from 10Khz. – 100 kHz. >80 dB from 100 Khz. _ 1GHz. (Linear attenuation curve from 0.05 _ 100 ohms line impedance) Signal Line Protection Tel 3 Cable/Satellite Other Specifications Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) Master Pack Qty 2
