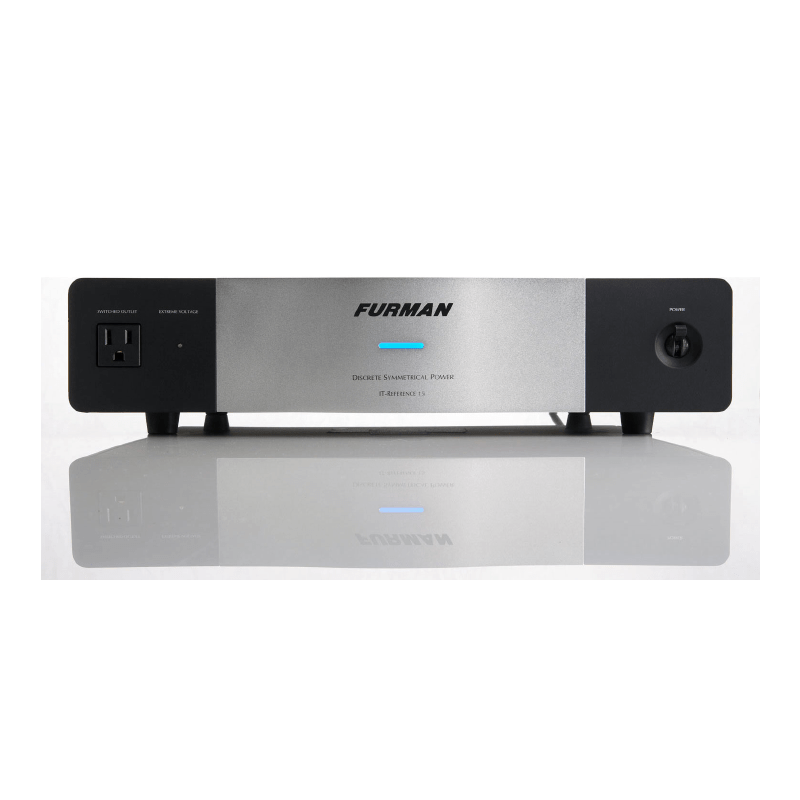

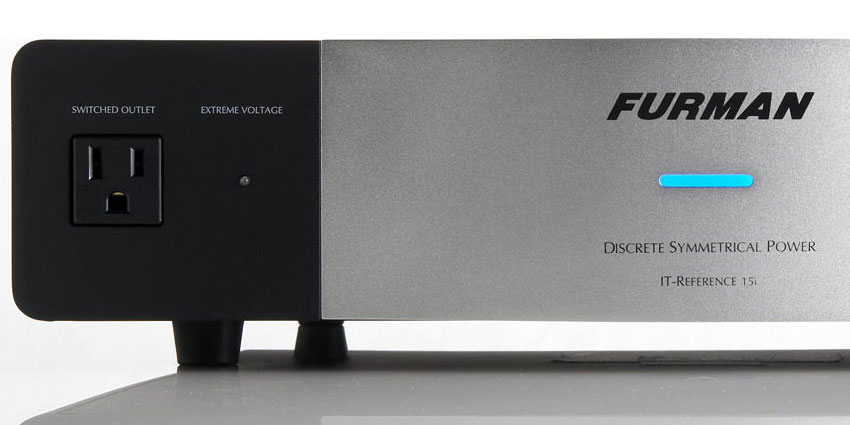

Features of the Furman IT-REF-15I 15 Amp Symmetrical Power Filter: Discrete symmetrical power with dual screen technology cancels hum-inducing noise from audio and video Power Factor technology provides surplus current for power-starved amplifiers Linear Filtering Technology (LiFT) for unequaled audio / video clarity Series Multi-Stage Protection (SMP) provides maximum AC surge suppression with Extreme Voltage Shutdown (EVS) and high current TVZ-MOV Three HD ready bidirectional coaxial surge suppression modules Detachable surge suppression module for telco and cable / satellite connectors Specifications: General Family Reference Series Line Voltage 120 (Volts) Number of Outlets 9 Number of Isolated Banks 2 Outlet Descriptions 2 (discrete symmetrical outlets)5 (linearly filtered outlets) 4 (Power Factor Technology outlets, 4.5 amps RMS reserve, reactive load, over 55 amps pk. charge) Rack Mountable Yes Rack Ears Included Yes Front Panel Meter(s) No Front Media Light(s) No Control On/Off switch on front panel. Voltage Regulation No Compliance C-ETL USB Charging N/A Low Voltage Trigger N/A Dimensions 4″ H x 17″ W x 15.625″ D (Standard 2 RU height without feet) Weight 50 lbs Power Consumption 8.5 Watts for display and control circuits independent of actual load AC Protection AC Protection Technology Extreme Voltage Shutdown Series Multi-Stage Protection Non-sacrificial protection with zero ground contamination Under-Voltage Shut off N/A Over-Voltage Shut off 140V ±3V Maximum Current Rating 15 (Amps) Initial Clamping Level 188 VAC peak @ 3,000 Amps Filtration Filtration Technology LiFT, Discrete Symmetrical Power with Dual Screen Technology Filtration Rating Transverse (Differential) Mode: > 40 dB from 10 kHz – 100 kHz > 80 dB from 100 kHz – 1GHz (Linear attenuation curve from 0.05 – 100 ohms line impedance)Common Mode (video outlets): > 75 dB, 10 Hz – 50 kHz > 40 dB 50 kHz – 1 MHz Signal Line Protection Tel 3 Cable/Satellite
