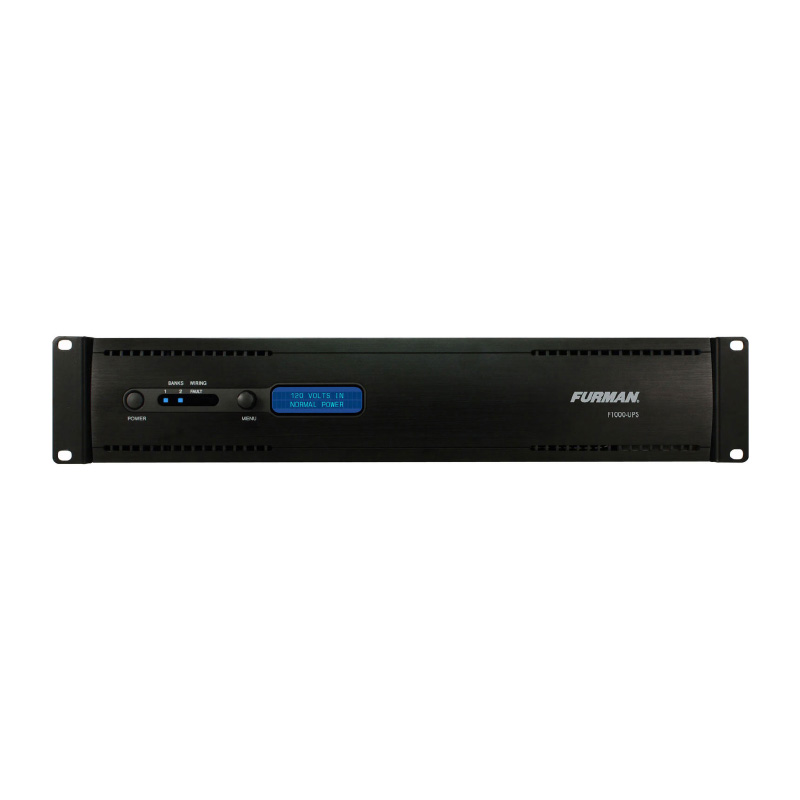

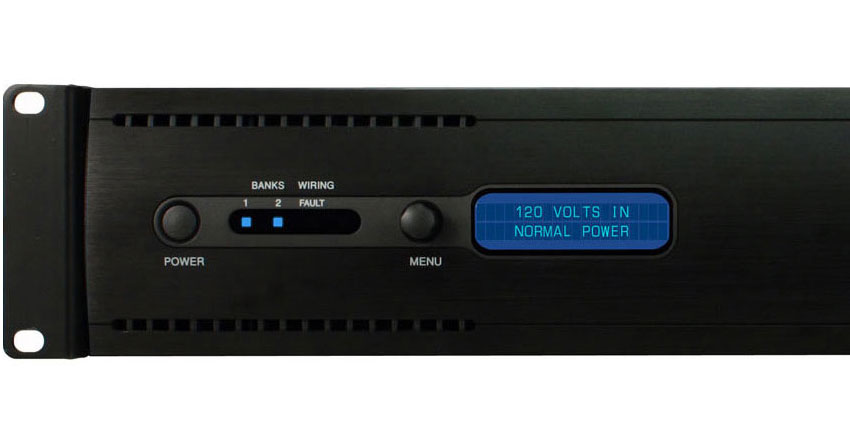

Features of the Furman F1000-UPS 1000VA 2RU Power Supply: Surge Protection Furman’s exclusive SMP technology provides the highest level of surge & spike protection available. Noise Filtration LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity. Voltage Protection Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions. Diagnostic Lights LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised. Standard Voltage Regulation Standard Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities. Battery Backup 1000VA Simulated Sine Wave battery backup protects your data in a power failure allowing the opportunity to save your applications, programs, and shut-down the system gracefully. Infrared Control Learning IR control allows you to program connected equipment for shut-down sequencing. RS-232 Protocol RS-232 Open Source Code Protocol provides custom programming for connected equipment. 12 AMP Rating 12 Amp rating featuring a circuit breaker for added protection. Eight Total Outlets 8 rear panel outlets. Critical Load Management Critical Load Management prioritizes the allocation of temporary power to connected equipment. Power Control Software Easy to use power control software assists you in maximizing the performance of your UPS. Specifications: General Family F-Battery Line Voltage 120 (Volts) Number of Outlets 8 Number of Isolated Banks 0 Outlet Descriptions All 8 outlets surge protected, linearly filtered, and backup Rack Mountable Yes Rack Ears Included Yes Front Panel Meter(s) LCD Displays status and menu navigation items Front Media Light(s) No Control Remote control through RS-232 serial port AC Power Cord 10 ft, captive Dimensions 17″ W (19″ w/ rack ears) x 13″ D x 3.5″ H (4″ tall with feet installed) Weight 36 lbs. Battery Backup Input Frequency 57 – 63 Hz Regulation Capture Range 99 – 135V (Sensitive Mode) 94 – 142V (Standard Mode) Output Frequency 60 Hz ± 1% UPS Output Capacity 1000VA, 600W @ 0.6pf Regulation Output Range 120V ± 5% (Sensitive Mode) 120V ± 10% (Standard Mode) UPS Backup Time (Full Load) 3 minutes Transfer Time < 10ms AC Protection AC Protection Technology Non-sacrificial SMP (Series Multi-Stage Protection) Under-Voltage Shut off 90V ± 5V Over-Voltage Shut off 150V ± 5V (fast rise) 132 ± 5V (slow rise) Maximum Current Rating 12 (Amps) Filtration Filtration Technology Linear Filtering Technology (LiFT) Filtration Rating 10 dB @ 10 kHz 40 dB @ 100 kHz 50 dB @ 500kHz
