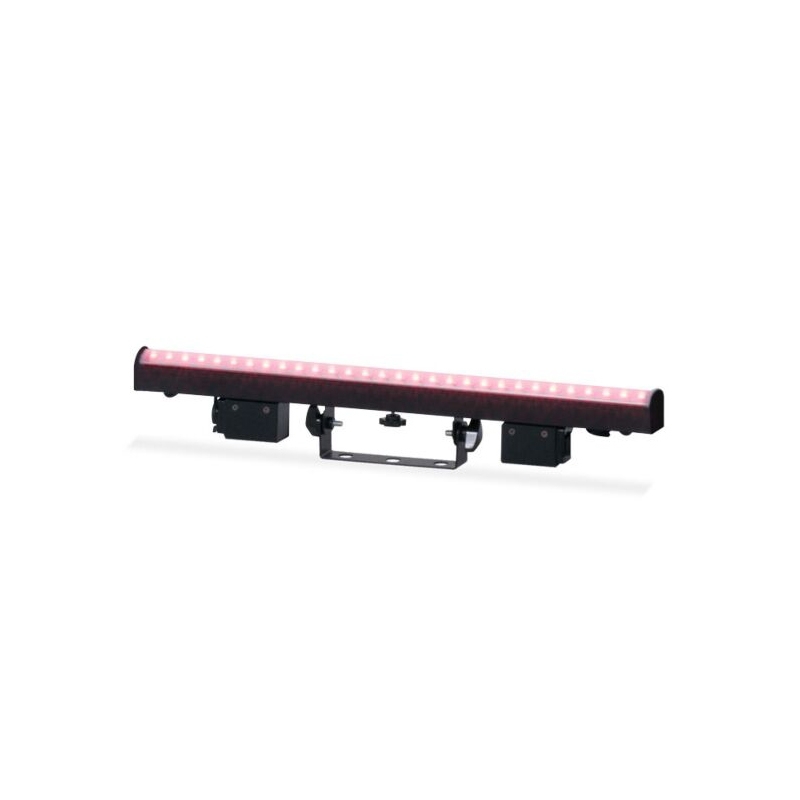

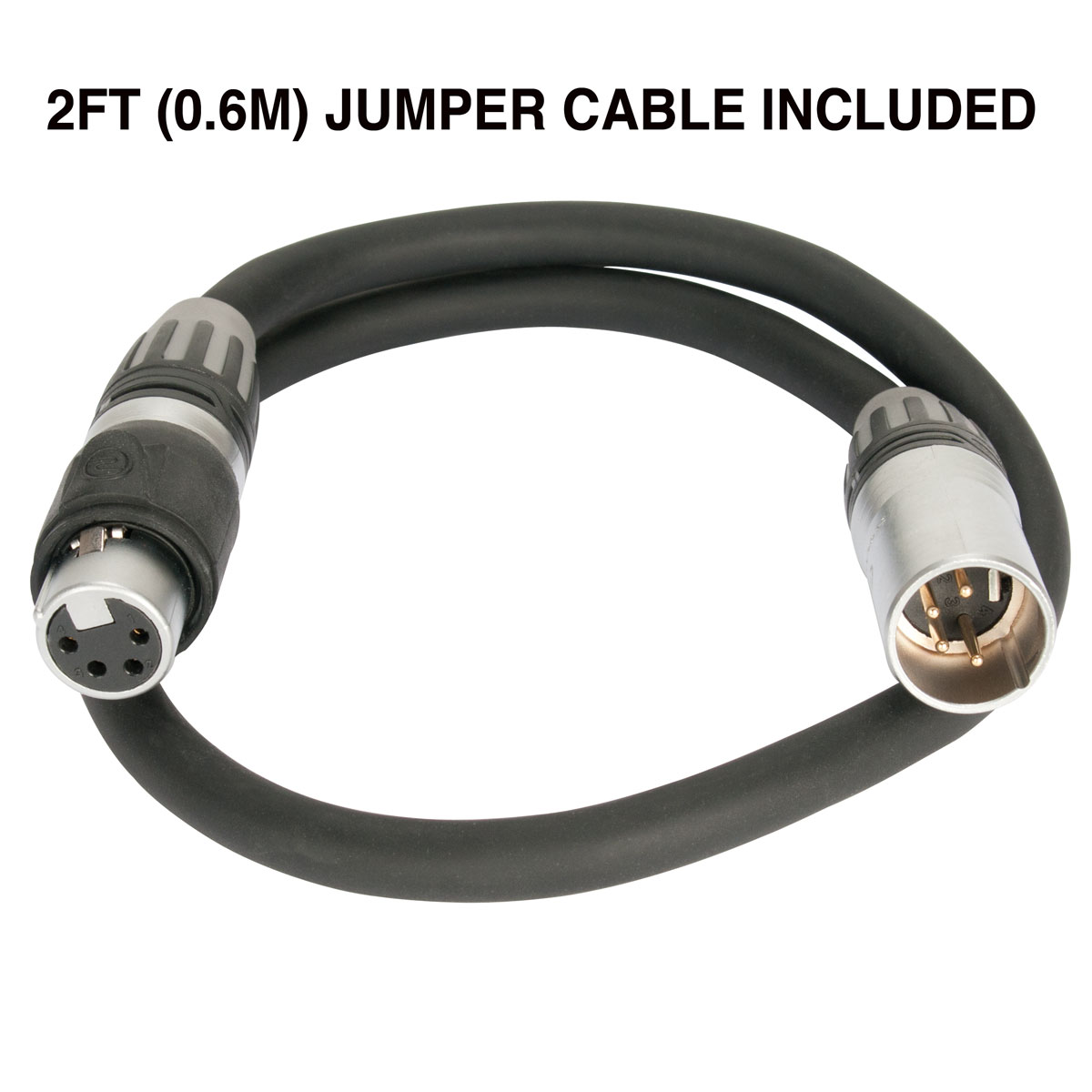

Features of the Elation Pixel Bar 30IP Outdoor IP65 Rated (30) RGB SMD LEDs | 0.5 meter / 1.6 feet 16mm Pixel Pitch | 44,000Hz PWM Flicker Free Operation for Broadcast TV and FILM Magnetic End Caps – Seamless End-to-End Spacing Integrated Adjustable Mounting Bracket Square and Rounded Frosted Lens Included 2ft (0.6m) Power/Data Jumper Cable included Proprietary IP Rated Power/Data Combo Cables* *Available in 2/3/5/10/12/15/20/25/30/50 Meter LengthsPixel Driver 4000 V2™ Controller (sold separately) Pixel Driver 1000IP™ Controller (sold separately) Manual Dimming and Strobe Control Full Pixel Mapping Control 4,080 Max Pixels via Kling-Net 680 Max Pixels via Art-Net and sACN (streaming ACN) Specifications SOURCE 0.2 SMD RGB 3-in-1 LEDs Color Resolution: 8 bits per color (24 bits per pixel) Viewing Angle: 120 x 120 degrees Pixels Per Meter: 60 pixels Pixel Pitch (pixel center-to-center) 16mm PWM (Pulse Width Modulation): 44,000Hz CONNECTIONS 4pin Power/Data In/Out SIZE / WEIGHT Length: 19.2” (488mm) Width: 1.3” (34mm) Height: 3.3” (83mm) Weight: 1.5 lbs. (0.7kg) ELECTRICAL Max Power Consumption: 6W ACCESSORIES (1) Frosted Square LED Lens Cover (Included) (1) Frosted Round LED Lens Cover (Included) (1) Stealth Gray LED Lens Cover (Included) (1) Stealth Gray LED Lens Cover (Included) APPROVALS CE | cETLus | IP65 Specifications and documentation subject to change without notice.
