ADJ VS5 – 5.95mm Pixel Pitch LED Video Panel

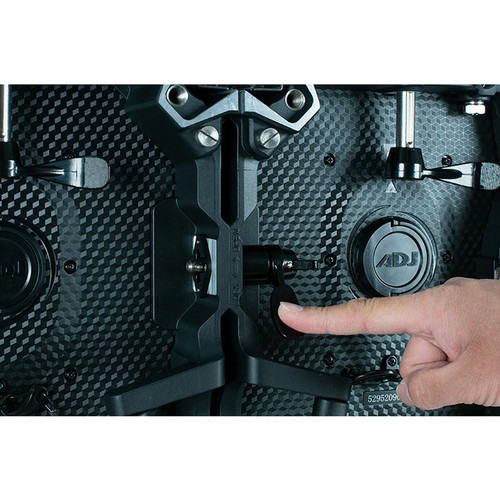

Specifications: • Pixel Pitch: 5.95mm (0.23”) • LED Configuration: 3-in-1 SMD2121 LED • Pixel Density: 84×84; 28224 per square meter • Size :19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm • Module Quantity: 4 • Weight: 17 lbs. / 7.7kg. FEATURES: • Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown • Front and rear serviceable: 4 easy to replace video modules on each panel • Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall MECHANICAL RATINGS: • Surface Flatness: Gaps<0.5mm OPTICAL RATINGS: • Brightness: 1000 NITS • View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m) • Gray Scale: ≥14-bit • Display Color: 256 • Brightness Adjustment: 0~100% 100 Levels • Contrast ratio: 5000:1 • Processing: 14-bit POWER SUPPLY: • Operation Power: 100~240V 50-60Hz • Max. Power Consumption: 170W/per panel • Ave. Power Consumption: 68W/per panel • Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out CONTROL SYSTEM: • Control Mode: Nova Star Synchronous System with Control via DVI • Frame Update Frequency: 50-75Hz • Scan Mode: 1/16 • Refresh Rate: 3840Hz • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI • Control Distance: Ethernet Cable <120m or Fiber Optic>120m • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280 • Brightness Correction: Pixel, Module, Cabinet ENVIRONMENTAL: • Operating Temp / Humidity: Fahrenheit: -4° 104° / Celsius: -20° 40°/ 10-90% (No Condensation) • Operating Life / MTBF: 50,000 Hours / 5,000 Hours • Protection Level: IP20 (Front and Back) • Out of Control Rate: <0.02% • Listings: cETLus (Pending)
