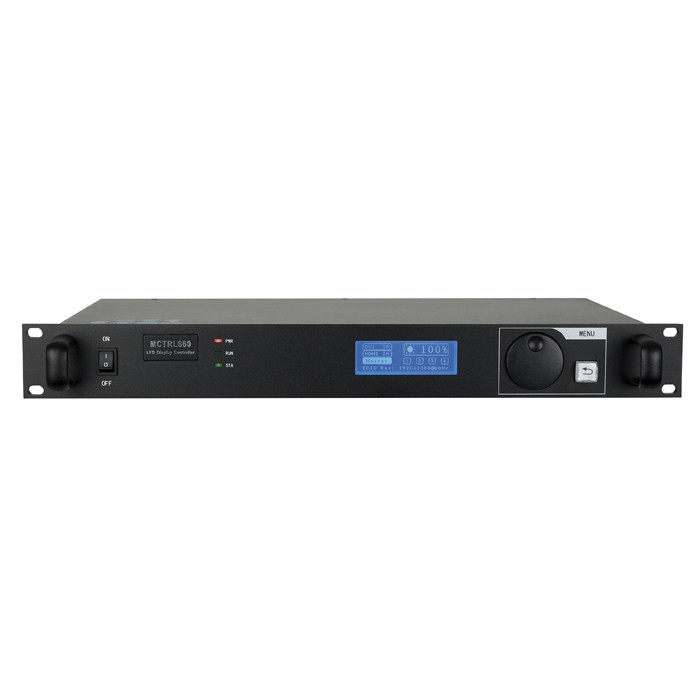

NovaStar MCTRL660 LED Video Controller

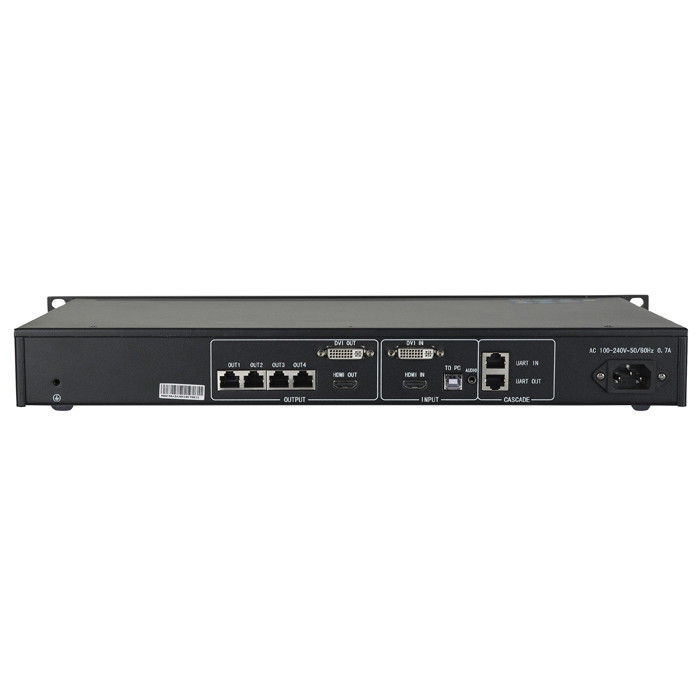

Features of the NovaStar MCTRL660 LED Video Controller: 1 €” DVI input 1 €” HDMI input 4 €” Gigabit Ethernet outputs Supports the new generation of NovaStar calibration technology, which is fast and efficient. Supports resolutions up to 1920€”1200@60Hz and downward compatibility. Multiple controllers can be cascaded. Supports 18-bit grayscale processing and display. Manual screen brightness adjustment, which is fast and convenient. Quick screen configuration without using a computer. Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time. Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth. Supports a variety of video formats, as described in Figure 2-1. Specifications: Connector Connector Name Description Input DVI IN Single-link DVI connector Resolution up to 1920€”1200@60Hz and downward compatible Custom resolutions supported: Resolution with maximum width: 3840€”600@60Hz Resolution with maximum height: 800€”2560@60Hz AUDIO Audio input connector HDMI IN HDMI 1.3 compliant Resolution up to 1920€”1080@60Hz and downward compatible Custom resolutions supported: Resolution with maximum width: 3840€”600@60Hz Resolution with maximum height: 800€”2560@60Hz l Support HDCP 1.4. Output RJ45 €” 4 4 Gigabit Ethernet outputs Maximum loading capacity of a single Ethernet port: 650,000 pixels Support redundancy between Ethernet ports. Control TO PC Type-B USB port for connecting to PC UART IN Input port for cascading devices UART OUT Output port for cascading devices. Up to 20 controllers can be cascaded. Power AC 100V~240V-50/60Hz
