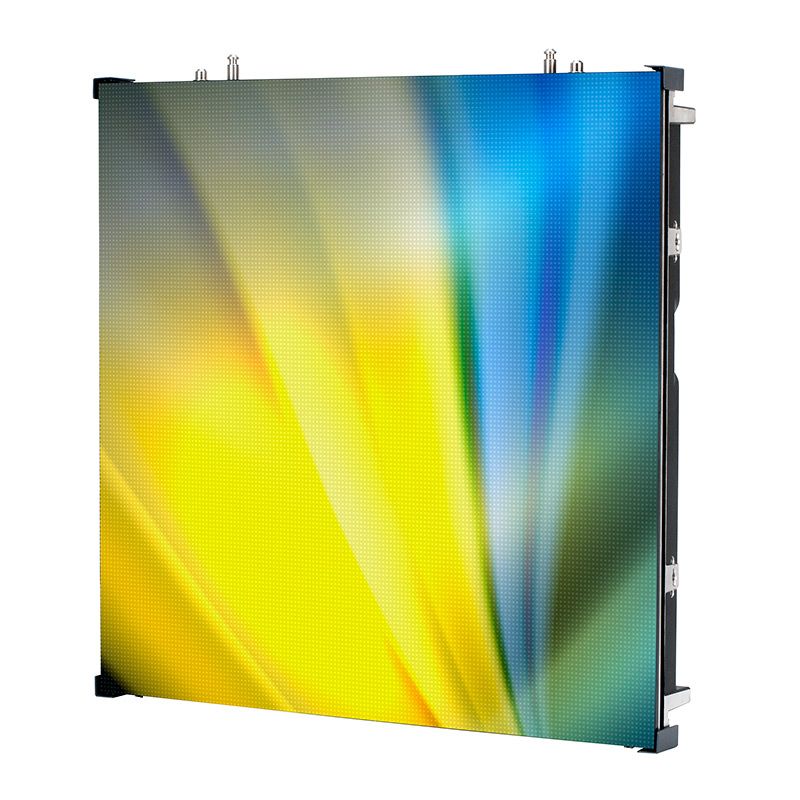

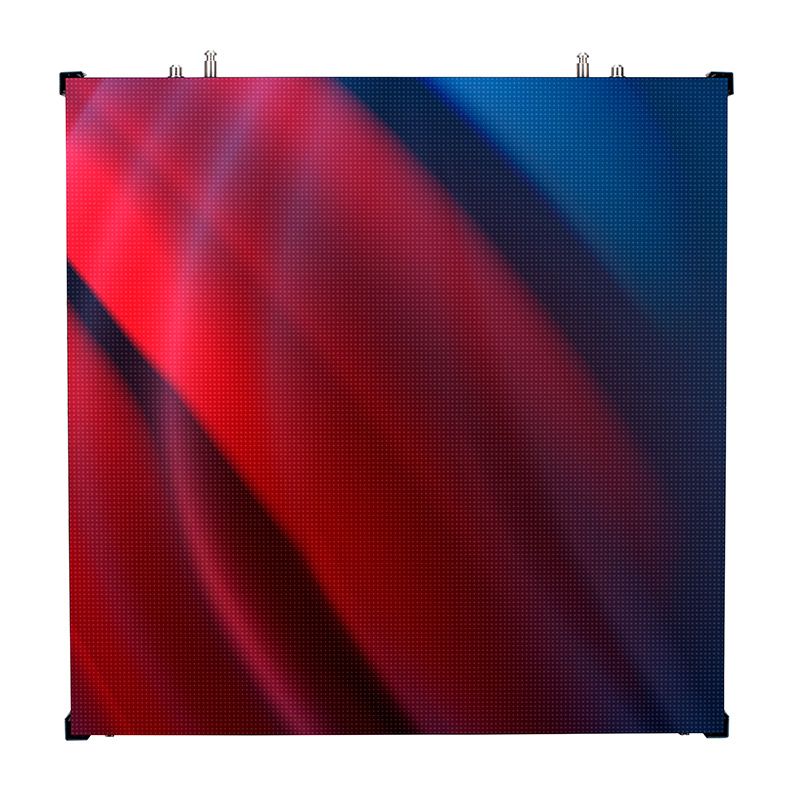

Features of the ADJ VS3IP – 3.84mm Pixel Pitch LED Video Panel: • IP65 Front / IP54 Back (Temporary outdoor use) • Corner Protectors to protect the corners of the VS3IP during transport, set-up and teardown • IP65 rated rubber capped protective connections • 4 easy to replace video modules on each panel • Rear carry handles • Curve panels in convex or concave -6, -3 degrees or 0, 3, 6 degrees • Quick lock system to connect panels together • Quick release power supply / receiving card module • Novastar A5S receiving card Specifications: • Pixel Pitch: 3.84mm (0.15”) • LED Configuration: 3-in-1 SMD1921 LED • Pixel Density: 150×150 per panel; 67816 per square meter • Size: 22.7” x 22.7” x 3.00” / 576mm x 576mm x 75mm • Module Quantity: 4 • Weight: 19.84 lbs. / 9kg. FEATURES: • IP65 Front / IP54 Back (Temporary outdoor use) • Corner Protectors to protect the corners of the VS3IP during transport, set-up and teardown • IP65 rated rubber capped protective connections • 4 easy to replace video modules on each panel • Rear carry handles • Curve panels in convex or concave -6, -3 degrees or 0, 3, 6 degrees • Quick lock system to connect panels together • Quick release power supply / receiving card module • Novastar A5S receiving card MECHANICAL RATINGS: • Surface Flatness: Gaps<0.5mm OPTICAL RATINGS: • Brightness: 4500 NITS • View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m) • Gray Scale: ≥14-bit • Display Color: 256 • Brightness Adjustment: 0~100% 100 Levels • Contrast ratio: 5000:1 • Processing: 14-bit POWER SUPPLY: • Operation Power: 100~240V 50-60Hz • Max. Power Consumption: 210W/per panel • Ave. Power Consumption: 84W/per panel • IP65 Rated Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out CONTROL SYSTEM: • Control Mode: Nova Star Synchronous System with Control via DVI • Frame Update Frequency: 50-75Hz • Scan Mode: 1/15 • Refresh Rate: 3840Hz • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI • Control Distance: Ethernet Cable <120m or Fiber Optic>120m • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280 • Brightness Correction: Pixel, Module, Cabinet ENVIRONMENTAL: • Operating Temp / Humidity: Fahrenheit: -4° 104° / Celsius: -20° 40°/ 10-90% (No Condensation) • Operating Life / MTBF: 50,000 Hours / 5,000 Hours • Protection Level: IP65 Front / IP54 Back • Out of Control Rate: <0.02% OPTIONAL ACCESSORIES: • VS3IPFC8 (VS3134): Flight Case – Fits 8 VS3IP Panels • VS3IPRB1 (VS3111): Rigging Bar – Hang up to 20 VS3IP Video Panels vertically or ground stack up to 8 • VSRQR (VSM210): Quick Rig – Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2″ pipe or truss • VS1RSB (VS1126) Rear Support Bracket for VS Series Panels • Novastar VX4S: Video Processor • Novastar MCTRL-300: Video Processor • Novastar Nova Pro HD: Video Processor • Arkaos Media Master: Video Software • Arkaos GrandVJ 2.0: Video Software CABLES: • Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors) • Power Locking Link Cables • Power Locking Main Power Cables CERTIFICATIONS: • cETLus Approved (Control #5015975) • CE Approved • Fcc Approved
