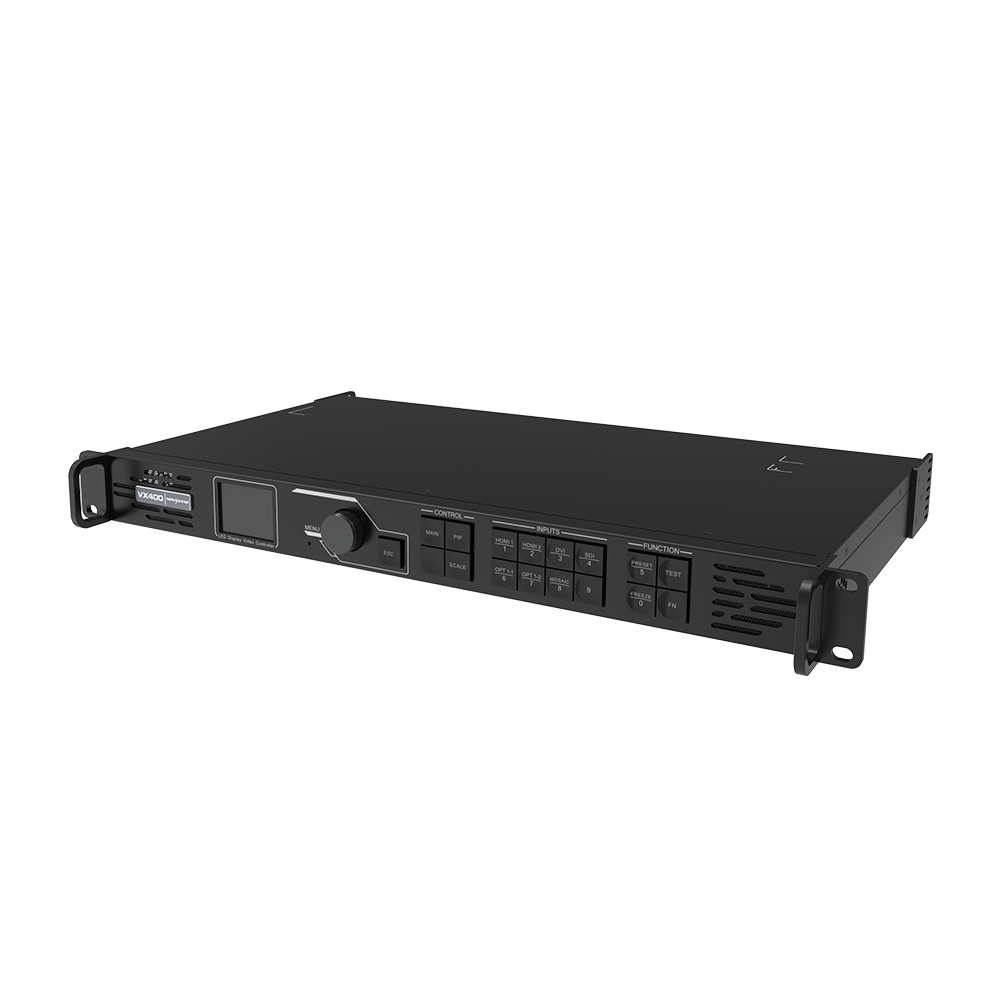

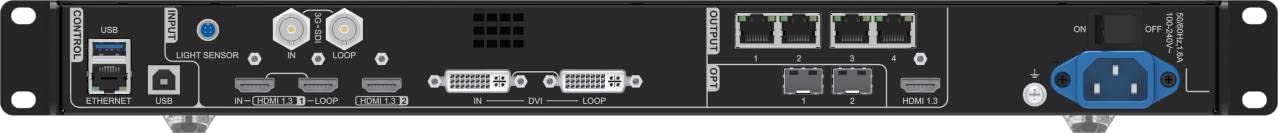

Features of the NovaStar VX400 LED Video Processor: Input connectors – 1x HDMI 1.3 (IN & LOOP) – 1x HDMI 1.3 – 1x DVI (IN & LOOP) – 1x 3G SDI (IN & LOOP) – 1x optical fiber port (OPT1) Output connectors – 4x Gigabit Ethernet ports A single device unit drives up to 2.6 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels. – 2x Fiber outputs OPT 1 copies the output on 4 Ethernet ports. OPT 2 copies or backs up the output on 4 Ethernet ports. – 1x HDMI 1.3 For monitoring or video output Self adaptive OPT 1 for either video input or sending card output Thanks to the selfadaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device. Audio input and output – Audio input accompanied with HDMI input source – Audio output via a multi function card – Output volume adjustment supported Low latency Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled. 2x layers – Adjustable layer size and position – Adjustable layer priority Output synchronization An internal input source can be used as the sync source to ensure the output images of all cascaded units in sync. Powerful video processing – Based on SuperView III image quality processing technologies to provide stepless output scaling – One click full screen display – Free input cropping Automatic screen brightness adjustment Adjust the screen brightness automatically based on the ambient brightness collected by the external light sensor. Easy preset saving and loading Up to 10 userdefined presets supported Multiple kinds of hot backup – Backup between devices – Backup between Ethernet ports Mosaic input source supported The mosaic source is composed of two sources (2K€”1K@60Hz) accessed to the OPT 1. Up to 4 units cascaded for image mosaic Three working modes – Video Controller – Fiber Converter – Bypass All round color adjustment Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma Pixel level brightness and chroma calibration Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and greatly improving LED display brightness and chroma consistency, allowing for better image quality. Multiple operation modes Control the device as you wish via VCan, NovaLCT or device front panel knob and buttons. Specifications: Product Type ¼Å¡ Video Controller Inputs ¼ 2x HDMI (IN LOOP), DVI (IN LOOP), 3G-SDI Outputs ¼ Ethernet port €” 4 Scaling: Yes, auto-fit Loading Capacity: 2.6 million pixels Video Loop¯ ¼ HDMI LOOP, DVI LOOP, SDI LOOP Video Monitor: HDMI OUT Communication Mode ¼ USB/LAN Image Mosaic ¼ Supported Crop Settings ¼ Supported PIP ¼ Supported Power ¼ Auto-Switching UL-listed power supply
