NovaStar All-in-One LED Display Controller for Superior Quality

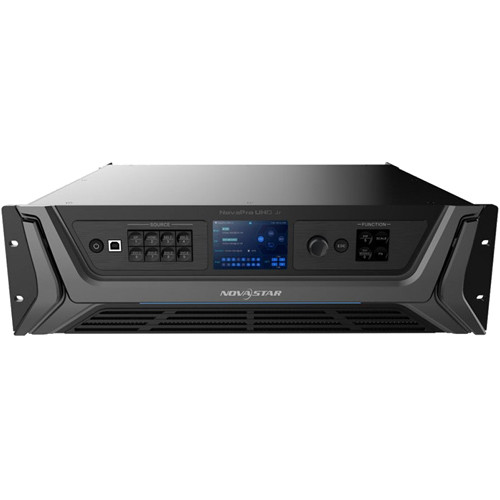

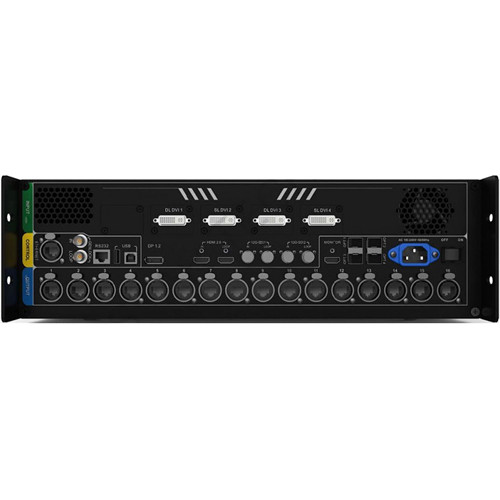

Features of the NovaStar NovaPro UHD Jr LED display controller: A variety of inputs and outputs Provides 1 €” DP 1.2, 4 €” DVI, 1 €” HDMI 2.0 with loop output and 2 €” 12G-SDI with loop output. More output connectors, larger loading capacity Provides 16 €” Neutrik Ethernet output and 4 €” optical fiber output, with loading capacity up to 10,400,000 pixels. The maximum width is 16K and maximum height is 8K. DVI mosaic An input source can be made up of at most 4 DVI input sources. HDR output Greatly enhances display image quality, providing more clear and vivid image. Decimal frame rates The supported frame rates are 23.98, 29.97 and 59.94. Low-latency output Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards (A8/A8s/A9s/A10s Plus). Customized BKG settings Supports pure color and image BKGs. Personalized image scaling Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom. Capture function Captures input source image which can be used as a BKG image. Image mosaic Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor. V-Can (smart control software from NovaStar) supported 10 presets At most 10 user presets can be created and saved as templates which can be used directly and conveniently. EDID management supported Supports custom EDID and standard EDID. Specifications: Input Connector Quantity Description DVI 4 Four DVIs are all single-link DVI connectors by default 4 €” DVI inputs Each DVI: Input resolution up to 1920€”1200@60Hz, downward compatible 4 DVI input sources constitute 1 input source (DVI MOSAIC). Standard resolutions supported In dual-link mode DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable. DVI 1/DVI 3: Input resolution up to 3840€”1080@60Hz, downward compatible Standard resolutions supported 12G-SDI 2 Input resolution up to 4096€”2160@60Hz, downward compatible Standard resolutions unsupported DP 1.2 1 Input resolution up to 3840€”2160 @60Hz, downward compatible HDCP 1.3 compliant Standard resolutions supported HDMI 2.0 1 Input resolution up to 3840€”2160 @60Hz, downward compatible HDCP 1.4 and HDCP 2.2 EDID management Standard resolutions supported Output Connector Quantity Description Ethernet port 16 16 €” Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels Maximum loading capacity: Max. width: 16K, max. height: 8K Maximum loading capacity of a single Ethernet port: 8-bit input source: 650,000 pixels 10-bit/12-bit input source: 320,000 pixels OPT 14 4 10G optical connectors OPT 1 transmits data of Ethernet ports 18. OPT 2 transmits data of Ethernet ports 916. OPT 3 serves as the hot backup or copy for OPT 1. OPT 4 serves as the hot backup or copy for OPT 2. HDMI 2.0 LOOP 1 HDMI loop output connector Only 1 level of device cascading supported HDCP 1.4 EDID management 12G-SDI LOOP 2 SDI loop output connectors MONITOR 1 HDMI connector for output monitoring Resolution up to 1920€”1080@60Hz Control Connector Quantity Description ETHERNET 1 Connect to the PC for communication, or connect to the Web for device control. USB (Type-B) 1 Connect to the PC for device control. Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic USB (Type-A) 1 Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic GENLOCK IN- LOOP 1 Connect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units. RS232 1 Connect to the control device.
