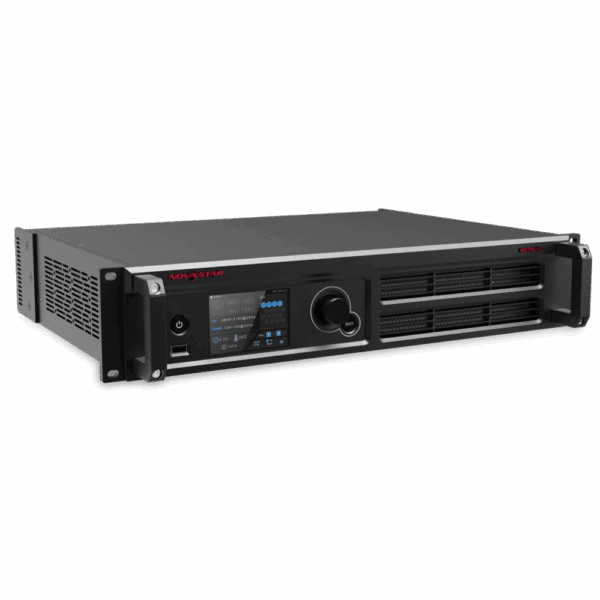

Features of the NovaStar MCTRL4K LED Display Controller: Supports HDR function, both in HDR10 and HLG standards, which can greatly enhance the image quality of the display, presenting more clear and vivid Supports individual Gamma adjustment for RGB when the bit depth of input source is 10-bit or 12-bit, which effectively controls image non-uniformity under low grayscale and white balance offset to improve image Low latency: Less than 1 ms (when the start position of image is ) Supports 3D function when working with the 3D emitter EMT200 and 3D glasses, allowing you to experience 3D display In multi-card mode, the MCTRL4K can be used as two controllers, allowing the images of two input sources to be displayed on the screen at the same The MCTRL4K is stable, reliable and powerful, dedicated to providing a best visual experience. It can be mainly used for the fixed and rental applications, such as concerts, live events, security monitoring, Olympic Games and various sports centers. Specifications: Input DP 1.2 DP 1.2 input, with a maximum resolution of 4096€”2160@60Hz and minimum resolution of 640€”480@24Hz Pixel capacity: 8,800,000 pixels Custom resolutions supported: Resolution limit with maximum width: 7680€”1080@60Hz Resolution limit with maximum height: 1080€”7680@60Hz Supports HDCP 1.3. Supported standard resolutions: 1280€”1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1366€”768@(24/25/30/48/50/60/72/75/85/100/120)Hz 1440€”900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600€”1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920€”1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920€”1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920€”2160@(24/25/30/48/50/60/72/75/85/100/120)Hz 2560€”1600@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840€”1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840€”2160@(24/25/30/48/50/60)Hz HDMI 2.0 HDMI 2.0 input, with a maximum resolution of 4096€”2160@60Hz and minimum resolution of 800€”600@30Hz Pixel capacity: 8,800,000 pixels Custom resolutions supported: Resolution limit with maximum width: 7680€”1080@60Hz Resolution limit with maximum height: 1080€”7680@60Hz Supports HDCP 1.4 and HDCP 2.2. Supported standard resolutions: 1280€”1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1440€”900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600€”1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920€”1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920€”1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920€”2160@(24/25/30/48/50/60/72/75/85/100/120)Hz 2048€”1536@(24/25/30/48/50/60/72/75/85/100/120)Hz 2560€”1600@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840€”1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840€”2160@(24/25/30/48/50/60)Hz DUAL DVI-D1 DUAL DVI-D2 2 €” DVI inputs, each with a maximum resolution of 3840€”1080@60Hz and minimum resolution of 800€”600@30Hz Pixel capacity: 8,300,000 pixels Custom resolutions supported: Resolution limit with maximum width: 3840€”2160@60Hz Resolution limit with maximum height: 2160€”3840@60Hz Supported standard resolutions: 1280€”1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1366€”768@(24/25/30/48/50/60/72/75/85/100/120)Hz 1440€”900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600€”1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920€”1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920€”1200@(24/25/30/48/50/60/72/75/85/100)Hz 1920€”2160@(24/25/30/48/50/60)Hz 2560€”1600@(24/25/30/48/50/60)Hz 3840€”1080@(24/25/30/48/50/60)Hz 3840€”2160@(24/25/30)Hz Output 116 16 Neutrik (NE8FBH) Gigabit Ethernet ports Maximum loading capacity of a single Ethernet port: For 8-bit input sources: 650,000 pixels For 10-bit/12-bit input sources: 320,000 pixels Do not support audio output. Support redundancy between Ethernet ports. OPT1OPT4 10G optical ports Single-mode twin-core fiber: Support LC optical connectors; wavelength: 1310 nm; transmission distance: 10 km; OS1/OS2 recommended. Dual-mode twin-core fiber: Support LC optical connectors; wavelength: 850 nm; transmission distance: 300 m; OM3/OM4 recommended. The maximum loading capacity of a single optical port equals to that of all the 8 Ethernet ports. 4 OPT inputs/outputs OPT1 and OPT2 are main input/output ports. OPT1 corresponds to Ethernet ports 18 and OPT2 corresponds to Ethernet ports 9 16. OPT3 and OPT4 are backup input/output ports. OPT3 is a duplicate channel of OPT1, and OPT4 is a duplicate channel of OPT2. Control ETHERNET For PC connection USB IN Input port for cascading devices, or connecting to PC USB OUT Output port for cascading devices GENLOCK IN Genlock input connector Genlock type: Blackburst Input Genlock sync signal to ensure synchronization and same refresh rate between the output signals of cascaded MCTRL4K units and the external Genlock signal. LOOP Genlock loop output connector Up to 10 MCTRL4K units can be cascaded. Power AC 100 V240 V, 50/60Hz AC power input
