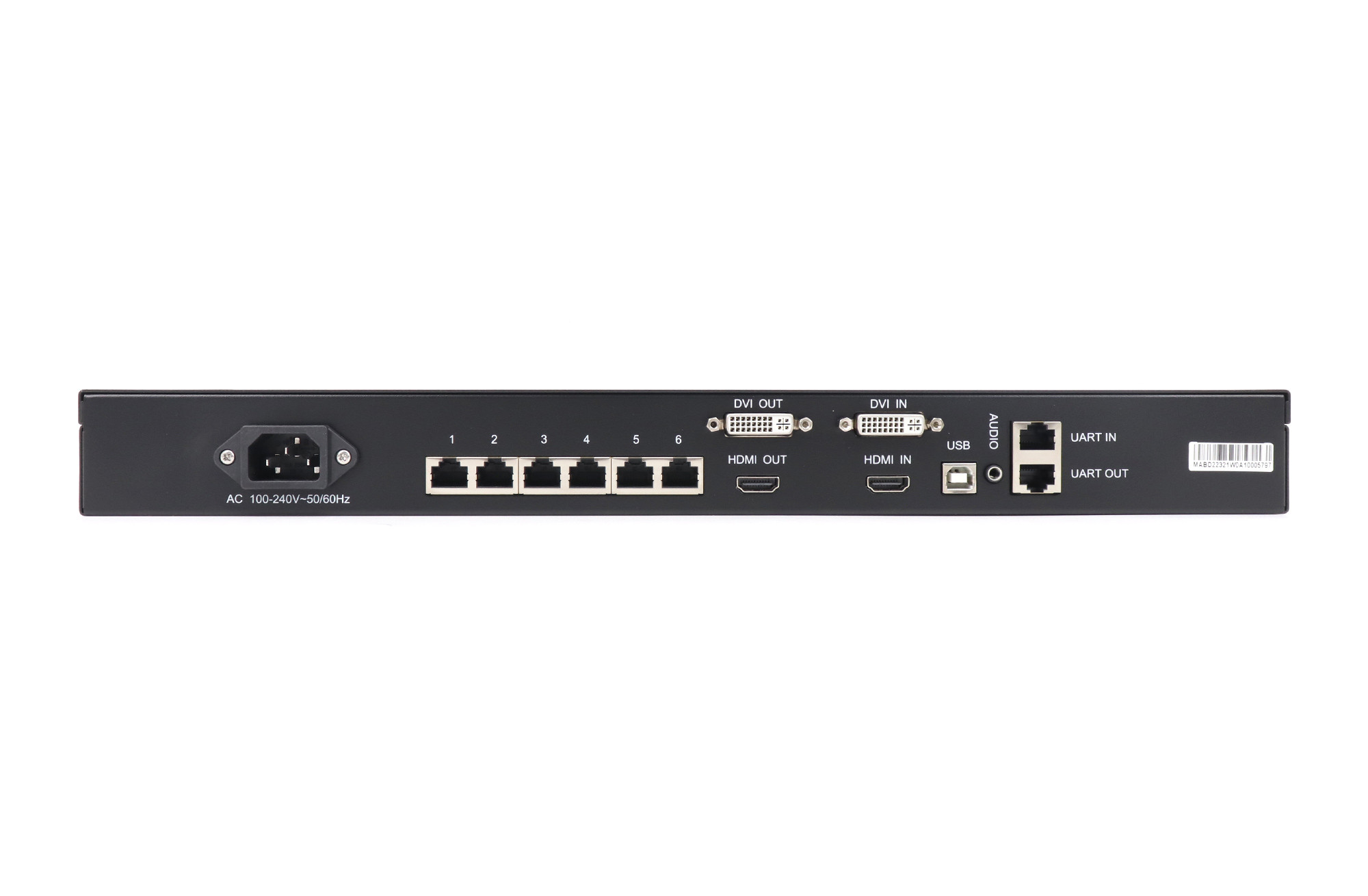

Features of the NovaStar MCTRL700 LED Video Controller: 3 €” Input connectors 1€”SL-DVI (IN-OUT) 1€”HDMI 1.3 (IN-OUT) 1€”AUDIO 6€”Gigabit Ethernet outputs 1€”Type-B USB control port 2€”UART control ports Used for device cascading. Up to 20 devices can be cascaded. Pixel level brightness and chroma calibration. Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality. Specifications: Connector Type Connector Name Description Input DVI IN 1x SL-DVI input connector l Resolutions up to 1920€”1200@60Hz l Custom resolutions supported Maximum width: 3840 (3840€”600@60Hz) Maximum height: 3840 (548€”3840@60Hz) l HDCP 1.4 compliant l DOES NOT support interlaced signal input. HDMI IN 1x HDMI 1.3 input connector l Resolutions up to 1920€”1200@60Hz l Custom resolutions supported Maximum width: 3840 (3840€”600@60Hz) Maximum height: 3840 (548€”3840@60Hz) l HDCP1.4 compliant l DOES NOT support interlaced signal input. AUDIO Audio input connector Output 1~6 6x RJ45 Gigabit Ethernet ports l Capacity per port up to 650,000 pixels l Redundancy between Ethernet ports supported HDMI OUT 1x HDMI 1.3 output connector for cascading DVI OUT 1x SL-DVI output connector for cascading Control USB Type-B USB 2.0 port to connect to PC UART IN/OUT Input and output ports to cascade devices. Up to 20 devices can be cascaded. Power AC 100V-240V~50/60Hz
