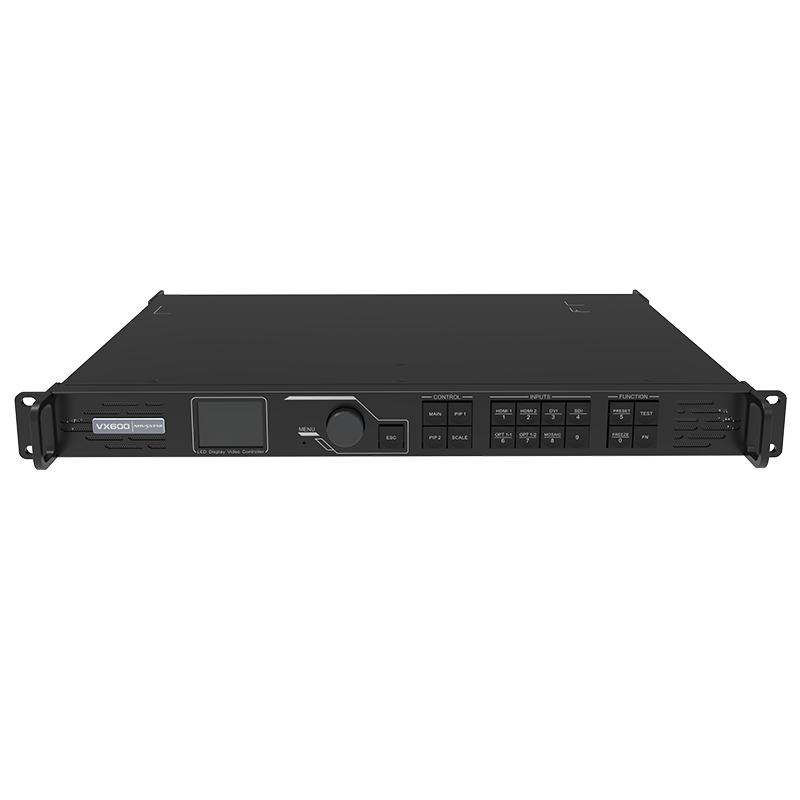

Features of the Novastar VX600 LED Controller: Input connectors: – 1x HDMI 1.3 – 1x DVI (IN & LOOP) – 1x 3GSDI (IN & LOOP) – 1x 10G optical fiber port (OPT1) Output connectors: – 6x Gigabit Ethernet ports A single device unit drives up to 3.9 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels. – 2x Fiber outputs OPT 1 copies the output on 6 Ethernet ports. OPT 2 copies or backs up the output on 6 Ethernet ports. – 1x HDMI 1.3 For monitoring or video output Selfadaptive OPT 1 for either video input or sending card output Thanks to the selfadaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device. Audio input and output – Audio input accompanied with HDMI input source – Audio output via a multi function card – Output volume adjustment supported Specifications: Loading Capacity 3.9 million pixels Max Width & Height Width 10,240 pixels x Height 8,192 pixels Layers 3 Layers Inputs 1x 3G SDI (IN & LOOP) 1x HDMI1.3 (IN & LOOP) 1x HDMI1.3 1x DVI (IN & LOOP) 1x OPT Outputs‚ 6x RJ45 2x 10G OPT 1x HDMI1.3 (For Monitor or Preview) GENLOCK (IN & LOOP): Yes Low Latency: Yes Input Source Backup: Yes Bypass Mode: Yes Fiber Converter Mode: Yes Electrical Parameters Power connector 100240V~, 1.5A, 50/60Hz Rated power consumption 28 W Operating Environment Temperature 10‚°C to 60‚°C Humidity 20% RH to 90% RH, non-condensing Storage Environment ‚ Temperature 20‚°C to 70‚°C Humidity 10% RH to 95% RH, non-condensing Physical Specifications Dimensions 483.6 mm €” 351.2 mm €” 50.1 mm Net weight 4 kg Gross weight 6.3 kg Packing Information Accessories‚ 1x Power cord 1x HDMI to DVI cable 1x USB cable1x Ethernet cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Customer Letter 1x Safety Manual Packing box 565 mm €” 175 mm €” 450 mm Certifications TBD Noise Level (typical at 25‚°C/77‚°F) 45 dB (A)
