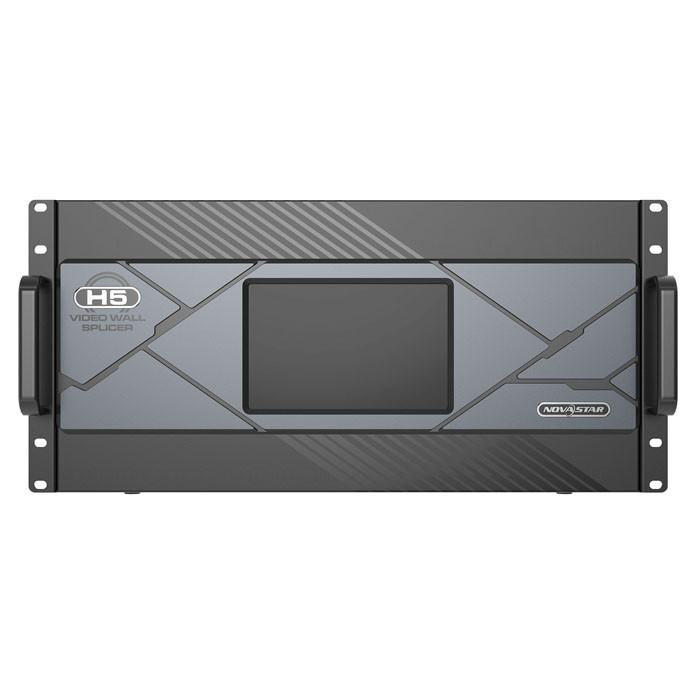

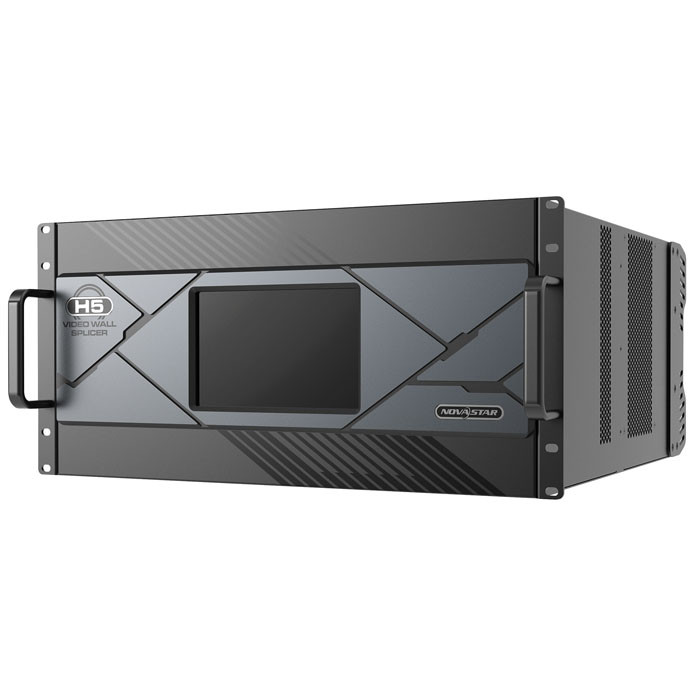

NovaStar H5 All-In-One Splicer and Controller

Features of the NovaStar H5 All-In-One Splicer and Controller: Modular and plug-in design, free combination at your will Two kinds of LED 4K sending cards – H_20xRJ45 sending card loads up to 13,000,000 pixels. – H_16xRJ45 2xfiber sending card loads up to 10,400,000 pixels and provides two OPT ports that copy the outputs on Ethernet ports. Multi-capacity configuration on a single card slot – 4x 2K€”1K@60Hz – 2x 4K€”1K@60Hz – 1x 4K€”2K@60Hz Simple screen configuration using a single card and connector Online status monitoring of all input and output cards Hot-swappable input and output cards H_2xRJ45 IP input card supports up to 100 IP camera inputs and input mosaic. Auto decryption of HDCP-encrypted sources Decimal frame rates supported HDR10 and HLG processing Specifications: Inputs cards available: 4x DVI card 4x HDMI card (2x HDMI 1.3 2x HDMI 1.4a) 1x HDMI 2.0 1x DP 1.2 card (Only one connector can be used at a time) 2x RJ45 Gigabit Ethernet card 4x 3G-SDI card 1x 12G SDI IN 1x 12G SDI Loop Analog (VGA) card 2x DP1.1 card 1x HDMI 2.0 2x HDMI 2.0 Output Cards: Monitor output (MVR) card with 2x RJ45 Gigabit ethernet and 1x HDMI 1.3 monitor output 16x RJ45 2x Fiber output card. 10,400,000 pixels loading capacity per card with a max width of 10,240 pixels and a max height of 10,240 pixels 20x RJ45 output card. 13,000,000 pixels loading capacity per card with a max width of 10,752 pixels and a max height of 10,752 pixels
