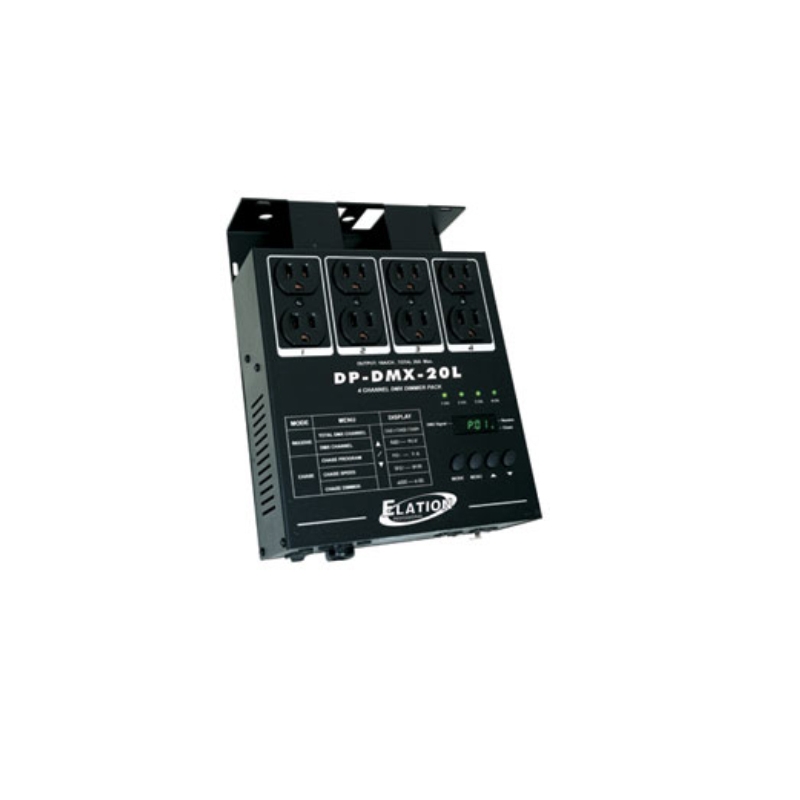

Specifications: 4 channel DMX Dimmer Pack Digital display- used to set starting DMX address channels and set all other menu options Selectable 1, 2, or 4 channel operation Adjustable master dim level. Two three prong Edison sockets per channel 3 pin XLR DMX Input & Output Four LED’s display channel activity External channel fuses for quick and easy replacement Sleek reversible mounting panel on the rear Zero crossing circuitry for protection of transformer loads when switching 16 built in Chases when in Chase mode with adjustable speed setting Use in conjunction with; DMX Operator Pro, Stage Setter-8, Scene Setter-24 & Stage Setter 24 Reversible mounting brackets. Power Input: 120V ~ 60Hz Maximum Load: 6.3A per channel / 15A total Dimensions: 10.25”L x 8.25”W x 3”H Weight: 6 lbs
